TP151AT/722000 S00001

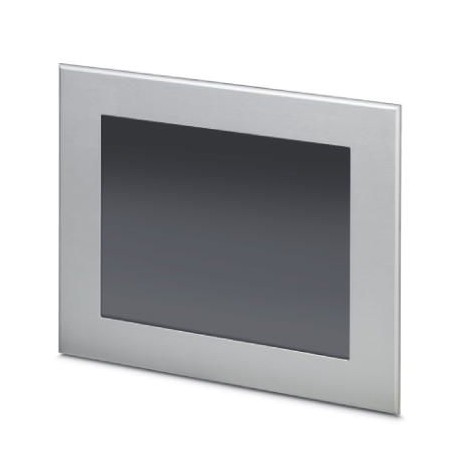

TP151AT/722000 S00001 2401402 PHOENIX CONTACT Touch panel
$0.00USD
3422 in stock
Key Specifications
GTIN:4055626148243
Note:Made to Order (non-returnable)
Orderkey:2401402
(General):NEMA 4X
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626148243 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2401402 |
| (General) | NEMA 4X |
| Packing unit | 1 pc |
| RAM (Display) | 512 KB SRAM |
| (Device supply) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Colors (Dimensions) | 65536 colors |
| Processor (Display) | Arm9™, 200 MHz |
| Bus system (Display) | PROFIBUS DP |
| Custom tariff number | 84714100 |
| Display (Dimensions) | 38.1 cm/15" TFT |
| Interfaces (Display) | 2x USB host 2.0 |
| Mass storage (Display) | NOR-Flash, 32 MB |
| Weight (Computer data) | 2300 g |
| Brightness (Dimensions) | 480 cd/m² typical (adjustable) |
| User software (Display) | TSvisRT |
| Realtime clock (Display) | Yes |
| Backlighting (Dimensions) | LED |
| China RoHS (Device supply) | Environmentally Friendly Use Period = 15; |
| Operating system (Display) | Windows®CE 5.0 |
| Mounting type (Computer data) | Front installation |
| Optional interfaces (Display) | none |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP65 (front), IP20 (back) |
| Reading angle top (Dimensions) | 65 ° |
| Screen resolution (Dimensions) | 1024 x 768 Pixel(s) (XGA) |
| Reading angle left (Dimensions) | 80 ° |
| External dimension, depth (Note) | 5 mm |
| External dimension, width (Note) | 400 mm |
| Housing material (Computer data) | Steel sheet, zinc-plated |
| Reading angle right (Dimensions) | 80 ° |
| External dimension, height (Note) | 329 mm |
| Reading angle bottom (Dimensions) | 80 ° |
| Service life of battery (Display) | 5 years (typical) |
| Display backlight MTBF (Dimensions) | 50000 h |
| Installation dimension, depth (Note) | 72 mm |
| Installation dimension, width (Note) | 373 mm |
| Material front plate (Computer data) | Aluminum (natural anodized) |
| Weight per Piece (excluding packing) | 0.000 g |
| Installation dimension, height (Note) | 302 mm |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| Optional operating keys (Computer data) | without |
| Note regarding external dimension (Note) | Dimensions of the front plate |
| Ambient temperature (operation) (General) | 0 °C ... 50 °C |
| Permissible humidity (operation) (General) | 20 % ... 85 % |
| Note regarding installation dimension (Note) | Mounting cutout, depth with bus if bus system present in the device |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Typical current consumption (Ambient conditions) | 0.9 A |
| Ambient temperature (storage/transport) (General) | -25 °C ... 70 °C |
Product Description
Touch panel with 38.1 cm / 15"-TFT-display (analog-resistive (polyester)), 1024 x 768 pixel(s) (XGA), 65536 colors, Arm9™, 200 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows CE 5.0
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
