In Stock Hot Product
TP 3156W/P

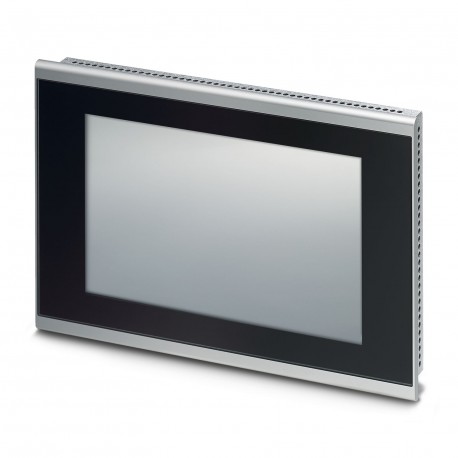

TP 3156W/P 2403462 PHOENIX CONTACT Touch panel
$0.00USD
3898 in stock
Key Specifications
:NEMA 4X
RAM:512 MB LPDDR RAM
MTBF:70000 h
Shock:DIN EN 60068-2-27
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NEMA 4X | |
| RAM | 512 MB LPDDR RAM |
| MTBF | 70000 h |
| Shock | DIN EN 60068-2-27 |
| Slots | 1x SD |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Processor | Arm® Cortex®-A8, 1000 MHz |
| Brightness | 320 cd/m² typical (adjustable) |
| Bus system | without |
| Interfaces | 2x USB Host 2.0 |
| Display type | 39.6 cm / 15.6"-TFT |
| Product type | Operator panel |
| Mounting type | Front mounting |
| User software | Visu+ |
| Color spectrum | 65536 colors |
| Realtime clock | Yes (battery-backed) |
| Runtime system | Visu+ Runtime |
| Supply voltage | 24 V DC |
| Article revision | 06 |
| Housing material | Steel sheet, zinc-plated |
| Operating system | Windows® Embedded Compact 7 |
| Touch technology | projective-capacitive (PCAP) |
| Power consumption | typ. 24 W |
| Power supply unit | 24 V DC ±20 % |
| Reading angle top | 80.00 ° |
| Screen resolution | 1366 x 768 Pixel(s) (WXGA) |
| Reading angle left | 80.00 ° |
| Data storage system | NAND-Flash, 1 GB |
| Reading angle right | 80.00 ° |
| Degree of protection | IP65 (front), IP20 (back) |
| Material front plate | Aluminum (natural anodized) |
| Reading angle bottom | 80.00 ° |
| Supply voltage range | 18 V DC ... 30 V DC |
| Display lighting type | LED |
| Vibration (operation) | DIN EN 60068-2-6 |
| Width / Height / Depth | 436 mm / 278 mm / 6 mm (Dimensions of the front plate) |
| Service life of battery | 5 years (typical) |
| Typical current consumption | 1 A |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Width / Height / Installation depth | 425 mm / 260 mm / 53 mm (Installation cutout) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) | 20 % ... 85 % (non-condensing) |
Product Description
39.6 cm/15.6''-display touchpad (projective-capacitive (PCAP)), 1366 x 768 pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 1000 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedde
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
