In Stock Hot Product
TP 3120W

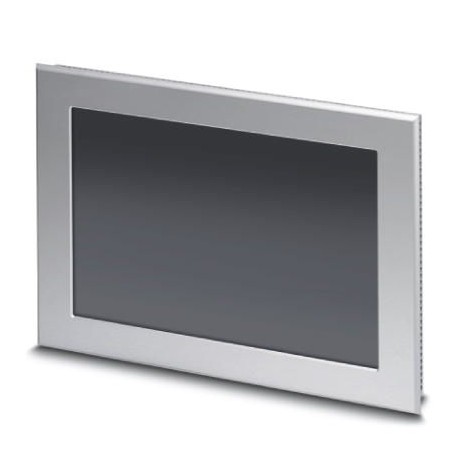

TP 3120W 2400457 PHOENIX CONTACT Touch panel
$0.00USD
4959 in stock
Key Specifications
GTIN:4055626055930
Orderkey:2400457
(Display):AX OPC Server
(General):NEMA 4X
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626055930 |
| Orderkey | 2400457 |
| (Display) | AX OPC Server |
| (General) | NEMA 4X |
| Catalog page | Page 20 (C-6-2017) |
| Packing unit | 1 pc |
| RAM (Display) | 512 MB RAM |
| Shock (General) | DIN EN 60068-2-27 |
| Slots (Display) | 1x SD |
| Country of origin | DE (Germany) |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Colors (Dimensions) | 65536 colors |
| Processor (Display) | Arm®Cortex®-A8, 800 MHz |
| Bus system (Display) | without |
| Custom tariff number | 84714100 |
| Display (Dimensions) | 30.7 cm/12.1" TFT |
| Interfaces (Display) | 2x USB host 2.0 |
| Shock (Device supply) | DIN EN 60068-2-27 |
| Mass storage (Display) | Flash, 1 GB |
| Weight (Computer data) | 2200 g |
| Brightness (Dimensions) | 320 cd/m² typical (adjustable) |
| User software (Display) | Visu+ |
| Realtime clock (Display) | Yes (battery-backed) |
| Backlighting (Dimensions) | LED |
| Installation depth (Note) | 53 mm (With bus interface) |
| Operating system (Display) | Windows®Embedded Compact 7 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mounting type (Computer data) | Front installation |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP65 (front), IP20 (back) |
| Reading angle top (Dimensions) | 88 ° |
| Screen resolution (Dimensions) | 1280 x 800 Pixel(s) (WXGA) |
| Reading angle left (Dimensions) | 88 ° |
| Vibration (operation) (General) | DIN EN 60068-2-6 |
| Housing material (Computer data) | Steel sheet, zinc-plated |
| Reading angle right (Dimensions) | 88 ° |
| Reading angle bottom (Dimensions) | 88 ° |
| Service life of battery (Display) | 5 years (typical) |
| Display backlight MTBF (Dimensions) | 50000 h |
| Supply voltage (Ambient conditions) | 24 V DC |
| Material front plate (Computer data) | Aluminum (natural anodized) |
| Weight per Piece (excluding packing) | 2,000.000 g |
| Vibration (operation) (Device supply) | DIN EN 60068-2-6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 15; |
| Power consumption (Ambient conditions) | typ. 16.8 W |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Ambient temperature (operation) (General) | 0 °C ... 50 °C |
| Supply voltage range (Ambient conditions) | 18 V DC ... 30 V DC |
| Permissible humidity (operation) (General) | 20 % ... 85 % (non-condensing) |
| Outer dimensions: width, height, depth (Note) | 330 mm x 225 mm x 5 mm (Dimensions of the front plate) |
| Utilization restriction (Key Commercial Data) | 1 |
| Typical current consumption (Ambient conditions) | typ. 0.7 A |
| Ambient temperature (storage/transport) (General) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) (General) | 20 % ... 85 % (non-condensing) |
| Installation dimensions: width, height, depth (Note) | 322 mm x 217 mm x 48 mm (Installation cutout) |
Product Description
Touchpad with 30.7 cm / 12.1"-TFT-display (analog-resistive (polyester)), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Window
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
