TP 3057V/WT SER

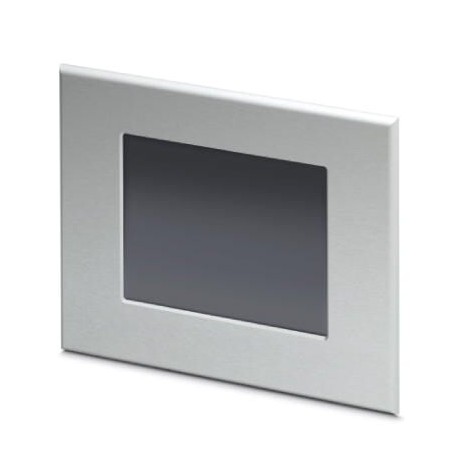

TP 3057V/WT SER 1090070 PHOENIX CONTACT Rugged-Touch panel with 14.5 cm/5.7" TFT active-display (Analog resi..
$0.00USD
3282 in stock
Key Specifications
GTIN:4055626897172
Orderkey:1090070
(Display):1x COM (RS-422/485)
(General):20 % ... 85 % (On the rear)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626897172 |
| Orderkey | 1090070 |
| (Display) | 1x COM (RS-422/485) |
| (General) | 20 % ... 85 % (On the rear) |
| Packing unit | 1 |
| RAM (Display) | 512 MB LPDDR SDRAM |
| Shock (General) | 15g, according to IEC 60068-2-27 |
| Slots (Display) | 1x SD |
| ETIM 4.0 (eCl@ss) | EC001412 |
| ETIM 5.0 (eCl@ss) | EC001412 |
| ETIM 6.0 (eCl@ss) | EC001412 |
| ETIM 7.0 (eCl@ss) | EC001412 |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| UNSPSC 13.2 (ETIM) | 43211904 |
| UNSPSC 18.0 (ETIM) | 43211904 |
| UNSPSC 19.0 (ETIM) | 43211904 |
| UNSPSC 20.0 (ETIM) | 43211904 |
| UNSPSC 21.0 (ETIM) | 43211904 |
| Colors (Dimensions) | 262144 colors |
| Processor (Display) | Arm®Cortex®-A8, 1000 MHz |
| Bus system (Display) | without |
| Custom tariff number | 84714100 |
| Display (Dimensions) | 14.5 cm/5.7" TFT active |
| Interfaces (Display) | 2x USB Host 2.0 |
| Shock (Device supply) | 15g, according to IEC 60068-2-27 |
| Extras (Computer data) | Integrated acoustic signal (buzzer) |
| Mass storage (Display) | NAND-Flash, 1 GB |
| Weight (Computer data) | 800 g |
| Brightness (Dimensions) | 400 cd/m², typical (adjustable) |
| User software (Display) | Visu+ |
| Realtime clock (Display) | Yes |
| Backlighting (Dimensions) | LED |
| Operating system (Display) | Windows®Embedded Compact 7 |
| eCl@ss 4.0 (Classifications) | 27330203 |
| eCl@ss 4.1 (Classifications) | 27330203 |
| eCl@ss 5.0 (Classifications) | 27330202 |
| eCl@ss 5.1 (Classifications) | 27330200 |
| eCl@ss 6.0 (Classifications) | 27242300 |
| eCl@ss 7.0 (Classifications) | 27242302 |
| eCl@ss 8.0 (Classifications) | 27242302 |
| eCl@ss 9.0 (Classifications) | 27330201 |
| Mounting type (Computer data) | Bolt fixing |
| Touch technology (Dimensions) | Analog resistive (GFG) |
| Degree of protection (General) | IP67 (front), IP20 (back) |
| Reading angle top (Dimensions) | 55 ° |
| Screen resolution (Dimensions) | 640 x 480 Pixel(s) (VGA) |
| Reading angle left (Dimensions) | 65 ° |
| Vibration (operation) (General) | 1g, according to EN 60068-2-6 |
| Housing material (Computer data) | Steel sheet, zinc-plated |
| Reading angle right (Dimensions) | 65 ° |
| Reading angle bottom (Dimensions) | 52 ° |
| Service life of battery (Display) | 5 years (typical) |
| Display backlight MTBF (Dimensions) | 40000 h |
| Material front plate (Computer data) | Aluminum (natural anodized) |
| Vibration (operation) (Device supply) | 1g, according to EN 60068-2-6 |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| Ambient temperature (operation) (General) | -20 °C ... 70 °C |
| Permissible humidity (operation) (General) | 5 % ... 95 % (Front) |
| Outer dimensions: width, height, depth (Note) | 195 mm x 153 mm x 5 mm (Dimensions of the front plate) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Typical current consumption (Ambient conditions) | 0.4 A |
| Ambient temperature (storage/transport) (General) | -30 °C ... 80 °C |
| Installation dimensions: width, height, depth (Note) | 161 mm x 119 mm x 42 mm (Mounting cutout, depth with bus if bus system present in the device) |
Product Description
Rugged-touch panel with 14.5 cm / 5.7" TFT-screen (analog-resistive (GFG)), 640 x 480 pixel(s) (VGA), 262144 colors, Arm®Cortex®-A8, 1000 MHz, 2x USB Host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
