TP 3043W/WT

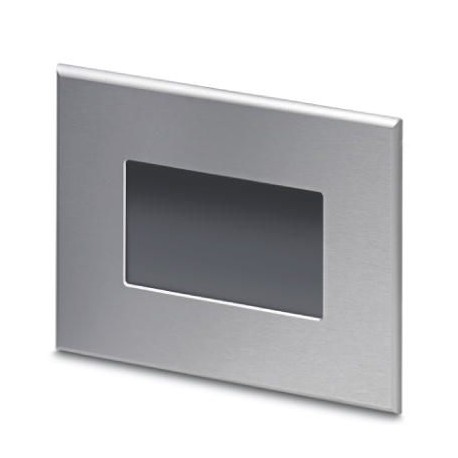

TP 3043W/WT 2404286 PHOENIX CONTACT Touch panel
$0.00USD
4223 in stock
Key Specifications
GTIN:4055626381985
Note:Made to Order (non-returnable)
Orderkey:2404286
(Display):512 MB LPDDR SDRAM
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626381985 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2404286 |
| (Display) | 512 MB LPDDR SDRAM |
| (General) | NEMA 4X |
| Catalog page | Page 45 (C-6-2017) |
| Packing unit | 1 pc |
| RAM (Display) | 1 MB SRAM |
| Shock (General) | 15g, according to IEC 60068-2-27 |
| Slots (Display) | 1x SD |
| Country of origin | DE (Germany) |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Colors (Dimensions) | 262144 colors |
| Processor (Display) | Arm®Cortex®-A8, 1000 MHz |
| Bus system (Display) | without |
| Custom tariff number | 84714100 |
| Display (Dimensions) | 10,92 cm / 4,3"-TFT |
| Interfaces (Display) | 2x USB host 2.0 |
| Shock (Device supply) | 15g, according to IEC 60068-2-27 |
| Extras (Computer data) | Integrated acoustic signal (buzzer) |
| Mass storage (Display) | NAND-Flash, 1 GB |
| Weight (Computer data) | 600 g |
| Brightness (Dimensions) | 385 cd/m² typical (adjustable) |
| User software (Display) | Visu+ |
| Realtime clock (Display) | Yes |
| Backlighting (Dimensions) | LED |
| Operating system (Display) | Windows®Embedded Compact 7 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mounting type (Computer data) | Bolt fixing |
| Touch technology (Dimensions) | Analog resistive (GFG) |
| Degree of protection (General) | IP67 (front), IP20 (back) |
| Reading angle top (Dimensions) | 63 ° |
| Screen resolution (Dimensions) | 480 x 272 Pixel(s) (WQVGA) |
| Reading angle left (Dimensions) | 75 ° |
| Vibration (operation) (General) | 1g, according to EN 60068-2-6 |
| Housing material (Computer data) | Steel sheet, zinc-plated |
| Reading angle right (Dimensions) | 75 ° |
| Reading angle bottom (Dimensions) | 75 ° |
| Service life of battery (Display) | 5 years (typical) |
| Display backlight MTBF (Dimensions) | 40000 h |
| Material front plate (Computer data) | Aluminum (natural anodized) |
| Weight per Piece (excluding packing) | 550.000 g |
| Vibration (operation) (Device supply) | 1g, according to EN 60068-2-6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 15; |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Ambient temperature (operation) (General) | -20 °C ... 70 °C |
| Permissible humidity (operation) (General) | 20 % ... 85 % |
| Outer dimensions: width, height, depth (Note) | 171 mm x 131 mm x 5 mm (Dimensions of the front plate) |
| Utilization restriction (Key Commercial Data) | 1 |
| Ambient temperature (storage/transport) (General) | -30 °C ... 80 °C |
| Installation dimensions: width, height, depth (Note) | 136 mm x 96 mm x 42 mm (Mounting cutout, depth with bus if bus system present in the device) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
