TP 04M CN

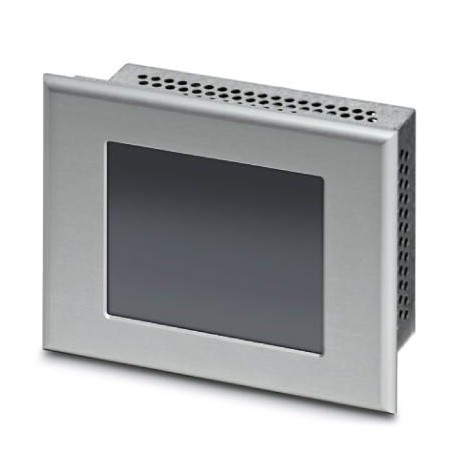

TP 04M CN 2700673 PHOENIX CONTACT Touch panel
$0.00USD
4285 in stock
Key Specifications
GTIN:4046356618984
Note:Made to Order (non-returnable)
Orderkey:2700673
(Display):512 KB SRAM
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356618984 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2700673 |
| (Display) | 512 KB SRAM |
| (General) | NEMA 4X |
| Packing unit | 1 pc |
| RAM (Display) | 64 MB SDRAM |
| Shock (General) | DIN EN 60068-2-27 |
| Country of origin | DE (Germany) |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Colors (Dimensions) | 5 grayscales |
| Processor (Display) | Arm9™, 200 MHz |
| Bus system (Display) | without |
| Custom tariff number | 84714100 |
| Display (Dimensions) | 9.7 cm/3.8" FSTN |
| Interfaces (Display) | 2x USB host 2.0 |
| Shock (Device supply) | DIN EN 60068-2-27 |
| Mass storage (Display) | Flash, 32 MB |
| Minimum order quantity | 30 pc |
| User software (Display) | Visu+ |
| Backlighting (Dimensions) | CCFL |
| Operating system (Display) | Windows®CE 5.0 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mounting type (Computer data) | Front installation |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP65 (front), IP20 (back) |
| Screen resolution (Dimensions) | 320 x 240 Pixel(s) (QVGA) |
| Vibration (operation) (General) | DIN EN 60068-2-6 |
| Housing material (Computer data) | Steel sheet, zinc-plated |
| Material front plate (Computer data) | Aluminum (natural anodized) |
| Weight per Piece (excluding packing) | 586.400 g |
| Vibration (operation) (Device supply) | DIN EN 60068-2-6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 15; |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Ambient temperature (operation) (General) | 0 °C ... 50 °C |
| Permissible humidity (operation) (General) | 20 % ... 85 % (non-condensing) |
| Outer dimensions: width, height, depth (Note) | 130 mm x 96 mm x 5 mm (Dimensions of the front plate) |
| Utilization restriction (Key Commercial Data) | 1 |
| Ambient temperature (storage/transport) (General) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) (General) | 10 % ... 95 % (non-condensing) |
| Installation dimensions: width, height, depth (Note) | 122 mm x 88 mm x 33 mm |
Product Description
Touch panel with 9.7 cm / 3.8", FSTN-display (analog-resistive (polyester)), 320 x 240 pixel(s) (QVGA), 5 gray levels, Arm9™, 200 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows CE 5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
