TML (EX9,5)R TR

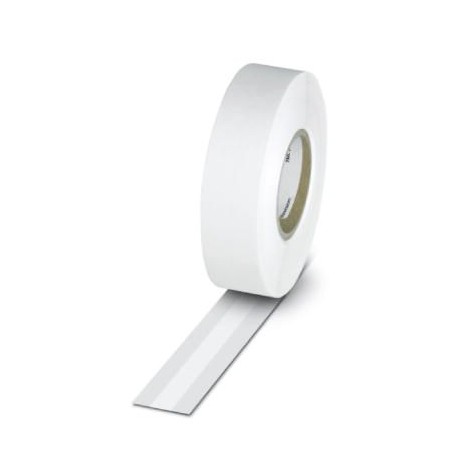

TML (EX9,5)R TR 0816634 PHOENIX CONTACT Marking foil for zack marker strip
$0.00USD
3064 in stock
Key Specifications
GTIN:4046356125543
Note:Made to Order (non-returnable)
Orderkey:0816634
Catalog page:Page 153 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356125543 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0816634 |
| Catalog page | Page 153 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39199080 |
| Type (Ambient conditions) | adhesive |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | transparent |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 9.5 mm |
| Length (b) (Key Commercial Data) | 40 m |
| Foil strength (Ambient conditions) | 23 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 102.800 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 20 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Recommended storage conditions (Dimensions) | 10-25 °C / 35-65 % relative humidity. Storage in a cool and dry place is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 150 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 4000 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 10 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Marking film for Zack strip, Roll, transparent, unlabeled, labelable with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting class: glu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
