TH2/R-KIC

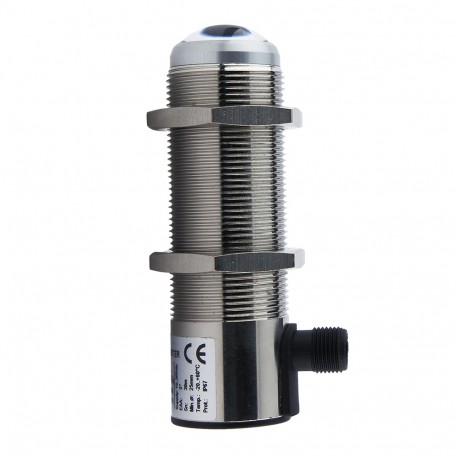

TH2/R-KIC MICRO DETECTORS Safety sensor Receiver M30 60m metallic plug M12 90° I/O IEC61131-2 f 123 kHz
$0.00USD
3672 in stock
Key Specifications
PL:c
SIL:1'
PFHd:1,00E-06
Type:2
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | c |
| SIL | 1' |
| PFHd | 1,00E-06 |
| Type | 2 |
| MTTFd | 20 |
| Notes | not working with SBCR03 control unit.To be used with external safety control unit with automatic optics test function |
| SILCL | 1 |
| humidity | 15% … 95% |
| Approvals | CE, TÜV |
| Dimensions | M30 |
| Connections | M12 plug |
| Output type | Totem-pole |
| Load current | ≤ 70mA |
| LED indicators | Yellow (alignement) |
| Housing Material | PBT |
| Operating Voltage | 10 … 30 Vdc |
| Function Principle | Through-Beam (receiver) |
| Max ripple content | ≤ 5 Vpp |
| Output voltage drop | 2,5V @ 50mA |
| Storage temperature | -40°C … +75°C |
| Thermal drift of Sr | ≤ 10% |
| Active Head Material | Glass |
| Degree of protection | IP67 |
| Supplied Accessories | 2 x nuts |
| Operating temperature | -20°C … +55°C |
| Shocks and vibrations | 10g - 16ms (according to IEC600068-2-29)10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6) |
| No-Load supply current | ≤ 25mA |
| Effective Aperture Angle | Typical ±1,8° |
| Nominal sensing distance | 60m (ExG=2) |
| Resposnse time for dark/light transition | 400µs |
| Resposnse time for light/dark transition | 200µs |
Product Description
TH2/R-KIC Safety sensor Receiver M30 60m metal. conn. M12 90° I/O IEC61131-2 f=123 kHz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
