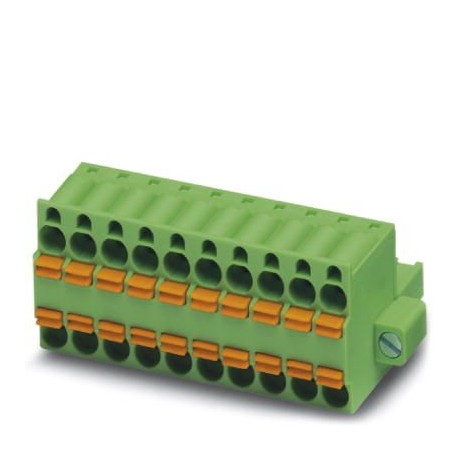

TFKC 2,5/ 5-STF-5,08
TFKC 2,5/ 5-STF-5,08 1962723 PHOENIX CONTACT Plug component, Nominal current: 12 A, Rated voltage (III/2): 3..
$0.00USD
3968 in stock
Key Specifications
Pitch:5.08 mm
Height:22.1 mm
Length:25.7 mm
Dimension a:20.32 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 5.08 mm |
| Height | 22.1 mm |
| Length | 25.7 mm |
| Dimension a | 20.32 mm |
| Stripping length | 10 mm |
| Range of articles | TFKC 2,5/..-STF |
| Nominal current IN | 12 A |
| Insulating material | PA |
| Number of positions | 5 |
| Maximum load current | 12 A |
| Rated voltage (II/2) | 630 V |
| Nominal cross section | 2.5 mm² |
| Rated voltage (III/2) | 320 V |
| Rated voltage (III/3) | 320 V |
| Insulating material group | I |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Maximum AWG according to UL/CUL | 12 |
| Minimum AWG according to UL/CUL | 26 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Connection in acc. with standard | EN-VDE |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Flammability rating according to UL 94 | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 5,
