TC ROUTER 2002T-3G

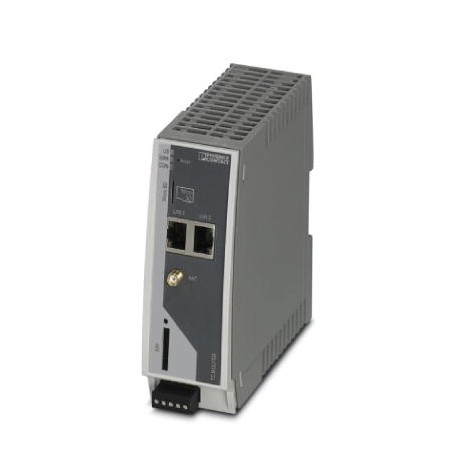

TC ROUTER 2002T-3G 2702531 PHOENIX CONTACT Router
$0.00USD
3656 in stock
Key Specifications
GTIN:4055626212838
Orderkey:2702531
(General):65 mA (With activated energy-saving mode)
Catalog page:Page 365 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626212838 |
| Orderkey | 2702531 |
| (General) | 65 mA (With activated energy-saving mode) |
| Catalog page | Page 365 (C-6-2017) |
| Depth (Note) | 126 mm |
| Packing unit | 1 pc |
| Width (Note) | 45 mm |
| (Dimensions) | -40 °C ... 60 °C (Maximum transmission power 23 dBm) |
| Height (Note) | 130 mm |
| Country of origin | DE (Germany) |
| (Serial interface) | CS1 ... CS4 |
| Custom tariff number | 85176200 |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| Output name (Function) | Digital output |
| EDGE (Serial interface) | Multislot Class 10 |
| GPRS (Serial interface) | Class 12, Class B |
| Signal (Digital inputs) | ± 1 kV (Data line, asymmetrical) |
| UMTS (Serial interface) | HSPA 3GPP R7 |
| Interface (Power supply) | Ethernet |
| Comments (Digital inputs) | Criterion B |
| Antenna (Serial interface) | 50 Ω impedance SMA antenna socket |
| Color (Ambient conditions) | gray |
| Dimensional drawing (Note) | |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| No. of ports (Power supply) | 2 |
| Noise immunity (Dimensions) | EN 61000-6-2 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Conformance (Digital inputs) | CE-compliant |
| Data rate (Serial interface) | ≤ 21.6 Mbps (HSPA (DL)) |
| Frequency (Serial interface) | 850 MHz (2 W (EGSM)) |
| Number of outputs (Function) | 1 |
| Test result (Digital inputs) | 15g |
| Type of test (Digital inputs) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Supply voltage range (General) | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Management (Wireless interface) | Web-based management, SNMP |
| Net weight (Ambient conditions) | 232.8 g |
| Noise immunity (Digital inputs) | EN 61000-6-2 |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | RJ45 socket, shielded |
| Current output signal (Function) | ≤ 50 mA (Not short-circuit proof) |
| Frequency range (Digital inputs) | 0.15 MHz ... 80 MHz |
| Voltage output signal (Function) | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Degree of protection (Dimensions) | IP20 |
| Noxious gas test (Digital inputs) | ISA-S71.04-1985 G3 Harsh Group A |
| Auxiliary protocols (Power supply) | ARP, DHCP, PING (ICMP), SNMP V1/V2, SMTP(S), NTP, SSL/TLS, STARTTLS |
| Contact discharge (Digital inputs) | ± 6 kV (Test Level 3) |
| Max. current consumption (General) | 1.7 A |
| Number of inputs (Digital outputs) | 2 |
| Protocols supported (Power supply) | TCP/IP, UDP/IP, FTP, HTTP(S) |
| SIM interface 1 (Serial interface) | 1.8 volt, 3 volt |
| Transmission length (Power supply) | 100 m (shielded twisted pair) |
| Weight per Piece (excluding packing) | 232.800 g |
| Housing material (Ambient conditions) | Plastic |
| Typical current consumption (General) | < 200 mA (24 V DC) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Standards/regulations (Digital inputs) | EN 61000-4-6 |
| Voltage input signal (Digital outputs) | 10 V DC ... 30 V DC |
| Interface description (Serial interface) | GSM / GPRS / EDGE / UMTS / HSPA |
| Serial transmission speed (Power supply) | 10/100 Mbps, auto negotiation |
| Electrical isolation (Ambient conditions) | VCC // UMTS // Ethernet // PE |
| Web-based management (Wireless interface) | yes |
| Description of the input (Digital outputs) | Digital input |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C (Maximum transmission power 10 dBm) |
| Switching level "1" signal (Digital outputs) | 10 V DC ... 30 V DC |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Electromagnetic compatibility (Digital inputs) | Conformance with RED Directive 2014/53/EU |
| Electromagnetic compatibility (Ambient conditions) | Conformance with RED Directive 2014/53/EU |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (non-condensing) |
Product Description
Industrial 3G Router, Europe Version, Fallback in 2G GPRS/EDGE, 2 Ethernet Interfaces, Firewall, NAT Support, Female Connector for SMA-F Antennas, SMS and Email Sending, 2 Digital Inputs, 1 Digital Ou
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
