TC ETH EXTENDER S19

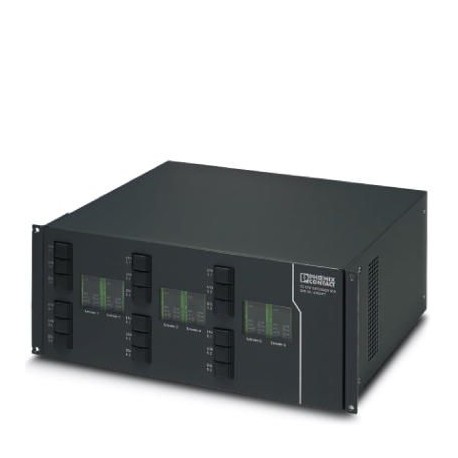

TC ETH EXTENDER S19 2702077 PHOENIX CONTACT Modem
$0.00USD
3920 in stock
Key Specifications
GTIN:4046356945516
Note:Made to Order (non-returnable)
Orderkey:2702077
Catalog page:Page 361 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356945516 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2702077 |
| Catalog page | Page 361 (C-6-2017) |
| Depth (Note) | 330 mm |
| Packing unit | 1 pc |
| Width (Note) | 438 mm |
| Height (Note) | 178 mm |
| Caption (Note) | Dimensional drawing |
| (Power supply) | 2-wire operation: 32 kbps ... 15.3 Mbps |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| (Ambient conditions) | 16 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| (Protective circuit) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Conformance (Function) | CE-compliant |
| Interface (Power supply) | Ethernet |
| MTTF (Ambient conditions) | 34 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Noise immunity (Function) | EN 61000-6-2 |
| Dimensional drawing (Note) | |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| Interface 2 (Power supply) | SHDSL interface according to ITU-T G.991.2.bis |
| Interface 3 (Power supply) | USB 2.0 |
| No. of ports (Power supply) | 12 (2-wire operation) |
| Noise immunity (Dimensions) | EN 61000-6-2 |
| (Standards and Regulations) | D1 - 1 kA |
| Management (Serial interface) | Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders) |
| Supply voltage range (General) | 100 V AC ... 240 V AC |
| China RoHS (Protective circuit) | Environmentally Friendly Use Period = 50 |
| Net weight (Ambient conditions) | 10900 g |
| REACh SVHC (Protective circuit) | Lead 7439-92-1 |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | USB Type B |
| Nominal supply voltage (General) | 230 V AC (50 Hz ... 60 Hz) |
| Vibration (operation) (Function) | DIN EN 60068-2-6 |
| Degree of protection (Dimensions) | IP20 |
| Protocols supported (Power supply) | Transparent protocol for IPv4 and IPv6 |
| Transmission length (Power supply) | < 5 m (only for configuration and diagnostics) |
| Weight per Piece (excluding packing) | 10,900.000 g |
| Housing material (Ambient conditions) | Steel, powder-coated |
| Typical current consumption (General) | < 300 mA (220 V AC) |
| Electromagnetic compatibility (Function) | Conformance with EMC Directive 2014/30/EU |
| Serial transmission speed (Power supply) | 4-wire operation: 64 kbps ... 30 Mbps |
| Electrical isolation (Ambient conditions) | VCC // Ethernet // DSL (A) // DSL (B) // FE |
| Rated current (Standards and Regulations) | ≤ 380 mA (25 °C) |
| Ambient temperature (operation) (Dimensions) | 5 °C ... 35 °C (Cabinet temperature) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Capacity (line-line) (Standards and Regulations) | 55 pF |
| Residual current IPE (Standards and Regulations) | ≤ 4 µA |
| Resistance in series (Standards and Regulations) | 3.3 Ω 20 % |
| Capacity (line-earth) (Standards and Regulations) | 7 pF |
| VDE requirement class (Standards and Regulations) | B2 |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| IEC test classification (Standards and Regulations) | B2 |
| Ambient temperature (storage/transport) (Dimensions) | 0 °C ... 50 °C |
| Input attenuation aE, sym. (Standards and Regulations) | |
| Response time tA(line-line) (Standards and Regulations) | ≤ 100 ns |
| Response time tA(line-earth) (Standards and Regulations) | ≤ 100 ns |
| Maximum continuous voltage UC (Standards and Regulations) | 185 V DC |
| Impulse durability (line-line) (Standards and Regulations) | C1 - 1 kV/500 A |
| Surge protection fault message (Standards and Regulations) | none |
| Impulse durability (line-earth) (Standards and Regulations) | B2 - 4 kV/100 A |
| Test voltage data interface/power supply (Ambient conditions) | 1.5 kVrms(50 Hz, 1 min.) |
| Operating effective current ICat UC (Standards and Regulations) | ≤ 6 µA |
| Voltage protection level Up(line-line) (Standards and Regulations) | 250 V (B2 - 100 A) |
| Voltage protection level Up(line-earth) (Standards and Regulations) | ≤ 580 V (B2 - 100 A) |
| Pulse discharge current Iimp(10/350) µs (Standards and Regulations) | 2.5 kA (Number of pulses category D1) |
| Total discharge current Itotal(8/20) µs (Standards and Regulations) | 10 kA |
| Nominal discharge current In(8/20) µs (line-line) (Standards and Regulations) | ≤ 5 kA |
| Nominal pulse current Ian (10/700) µs (line-line) (Standards and Regulations) | 150 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (Standards and Regulations) | 25 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (Standards and Regulations) | ≤ 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) (Standards and Regulations) | 100 A |
| Nominal pulse current Ian (10/700) µs (line-earth) (Standards and Regulations) | 150 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) (Standards and Regulations) | 100 A |
