TBUS8-25,0-PPPPPPPP-9005

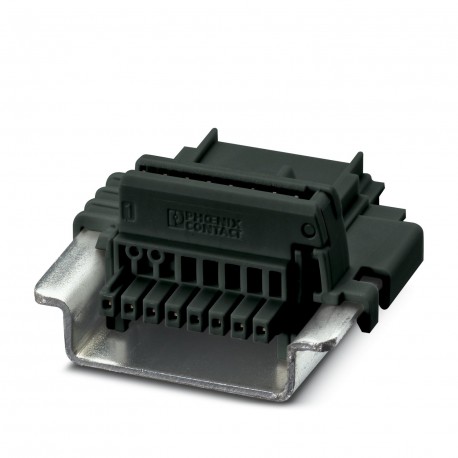

TBUS8-25,0-PPPPPPPP-9005 1072478 PHOENIX CONTACT DIN rail connector, number of positions: 8, pitch: 2.54 mm,..
$0.00USD
4882 in stock
Key Specifications
Pitch:2.54 mm
Color ():()
Width [w]:29.3 mm
Height [h]:37.15 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 2.54 mm |
| Color () | () |
| Width [w] | 29.3 mm |
| Height [h] | 37.15 mm |
| Length [l] | 16.3 mm |
| Product type | DIN rail connector |
| Mounting type | DIN rail mounting |
| Specification | IEC 60664-1:2007-04 |
| Product family | TBUS8-25.. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Color (Housing) | black (9005) |
| Contact material | Cu alloy |
| Type of packaging | packed in cardboard |
| Nominal current IN | 6 A (parallel contacts) |
| Nominal voltage UN | 32 V |
| Insulating material | PA |
| Number of positions | 8 |
| Outer packaging type | Carton |
| Rated voltage (II/2) | 32 V |
| Rated voltage (III/2) | 32 V |
| Rated voltage (III/3) | 32 V |
| Surface characteristics | gold-plated |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 1.5 kV |
| Rated surge voltage (III/2) | 1.5 kV |
| Rated surge voltage (III/3) | 1.5 kV |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 32 V |
| Rated insulation voltage (III/2) | 32 V |
| Rated insulation voltage (III/3) | 32 V |
| minimum creepage distance (II/2) | 0.53 mm |
| minimum creepage distance (III/2) | 0.53 mm |
| minimum creepage distance (III/3) | 1.3 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| minimum clearance value - non-homogenous field (II/2) | 0.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 0.5 mm |
| minimum clearance value - non-homogenous field (III/3) | 0.8 mm |
Product Description
Rail bus connectors, color: black, rated current: 6 A (parallel contacts), rated voltage (III/2): 32 V, number of poles: 8, pitch: 2.54 mm, mounting: Rail mounting, locking: without, fixing type: with
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
