T5V630

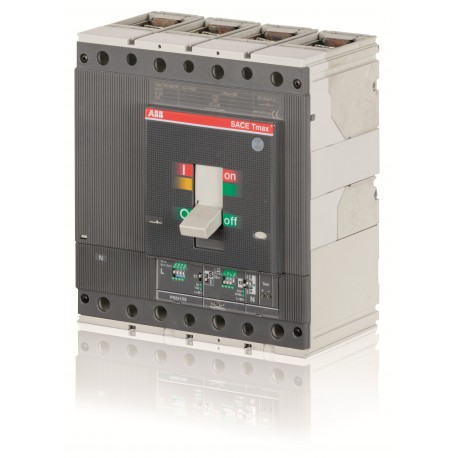

T5V630 1SDA054433R1 ABB T5V 630 PR221DS-I In 630 4p F F
$0.00USD
3259 in stock
Key Specifications
:9AKK108467A6707
EAN:8015644555375
ETIM 8:EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9:EC000228 - Power circuit-breaker for trafo/generator/installation protection
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 9AKK108467A6707 | |
| EAN | 8015644555375 |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC | 39121100 |
| eClass | V11.1 : 27370409 |
| Release | PR221DS-I |
| Version | F |
| Sub-type | T5 |
| Standards | IEC |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Release Type | EL |
| Suitable For | T5 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| GL Certificate | 1SDL000163R0062 |
| Number of Poles | 4 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Tmax T |
| Product Net Width | 186 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 205 mm |
| Product Net Weight | 6.2 kg |
| Rated Current (In) | 630 A |
| Package Level 1 EAN | 8015644555375 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 5000 cycle |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 240 mm |
| Instructions and Manuals | 1SDH000437R0001 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Test Voltage Max (Utest) | 3500 V |
| Environmental Information | 9AKK10103A1056 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 103.5 mm |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Package Level 1 Gross Weight | 6.2 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Package Level 1 Depth / Length | 285 mm |
| Short-Circuit Performance Level | V |
| Rated Uninterrupted Current (Iu) | 630 A |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
