T5B-2-10/E

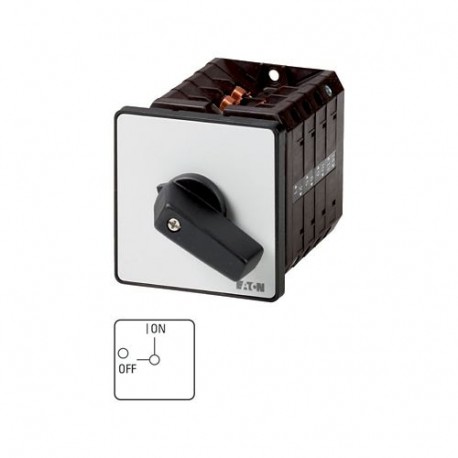

T5B-2-10/E 094120 Y7-94120 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, 90 °, flush mounting
$0.00USD
4185 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):108 mm
Width (EF000008):88 mm
Height (EF000040):88 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 108 mm |
| Width (EF000008) | 88 mm |
| Height (EF000040) | 88 mm |
| Interlockable (EF006281) | No |
| Number of poles (EF001391) | 4 |
| Number of switches (EF005586) | 1 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Black |
| Motor drive integrated (EF006697) | No |
| Version as main switch (EF006981) | No |
| Rated operating voltage (EF001435) | 690 V |
| Type of control element (EF006976) | Short thumb-grip |
| Switching power at 400 V (EF009166) | 30 kW |
| Version as safety switch (EF006985) | No |
| Voltage release optional (EF007491) | No |
| Rated permanent current Iu (EF001389) | 63 A |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (NEMA) (EF011959) | 12 |
| Version as reversing switch (EF009408) | No |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Rated operation power at AC-3, 400 V (EF001364) | 22 kW |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Rated operation power at AC-23, 400 V (EF007027) | 30 kW |
| Rated short-time withstand current lcw (EF007050) | 1.3 kA |
| Version as emergency stop installation (EF006959) | No |
| Version as maintenance-/service switch (EF006986) | No |
| Rated permanent current at AC-21, 400 V (EF009165) | 63 A |
| Conditioned rated short-circuit current Iq (EF001444) | 2 kA |
| Suitable for distribution board installation (EF007262) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
Disconnect switch ON-OFF; 3-pole + N; 63; 90 °; Mounting
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
