T1N160

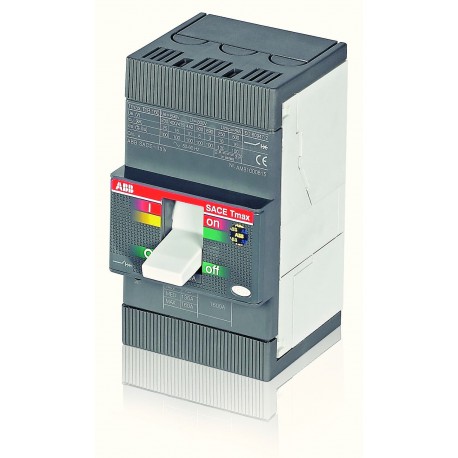

T1N160 1SDA050917R1 ABB T1N 160 TMD32-500 3p F FC Cu (1×70mm2)
$0.00USD
3483 in stock
Key Specifications
:120 cycles per hour
EAN:8015644513290
UNSPSC:39121100
Release:TMD
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 120 cycles per hour | |
| EAN | 8015644513290 |
| UNSPSC | 39121100 |
| Release | TMD |
| Version | F |
| Sub-type | T1 |
| Standards | IEC 60947 |
| Power Loss | at Rated Operating Conditions per Pole 2,1 W |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | CB |
| Release Type | TM |
| Suitable For | T1 |
| GL Certificate | 1SDL000163R0058 |
| Wiring Diagram | 1SDM000030R0001 |
| Number of Poles | 3 |
| RoHS Information | 1SDL000200R0001 |
| Product Main Type | SACE Tmax T |
| Product Net Width | 76 mm |
| Product Net Height | 130 mm |
| Product Net Weight | 1 kg |
| Rated Current (In) | 32 A |
| Package Level 1 EAN | 8015644513290 |
| Customs Tariff Number | 85362090 |
| Electrical Durability | 8000 cycle |
| Mechanical Durability | 25000 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 128 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 135 mm |
| Instructions and Manuals | ITSCE-RH0011001 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Test Voltage Max (Utest) | 3000 V |
| Environmental Information | 1SDL000140R0 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 70 mm |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Package Level 1 Gross Weight | 1.11 kg |
| Replacement Product ID (NEW) | 1SDA067411R1 |
| Rated Insulation Voltage (Ui) | 800 V |
| Declaration of Conformity - CE | 1SDL000165R0001 |
| Package Level 1 Depth / Length | 143 mm |
| Short-Circuit Performance Level | N |
| Rated Uninterrupted Current (Iu) | 160 A |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100.001 |
| Instructions and Manuals (Part 3) | ITSCE-RH0011002 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Data Sheet, Technical Information (Part 2) | 1SDM000030R0001 |
| Test Voltage at Industrial Frequency for 1 Minute | 3000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 37,5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 5 kA |
