In Stock Hot Product
T0-5-15902/E

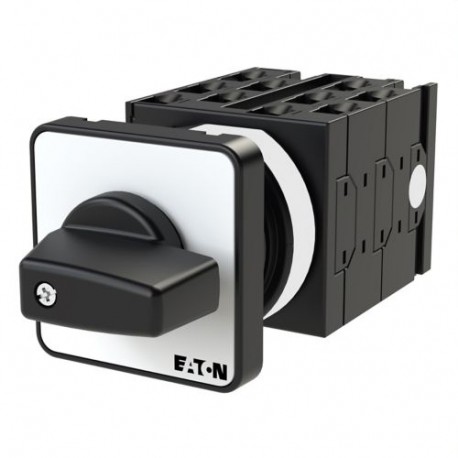

T0-5-15902/E 014593 Y7-14593 EATON ELECTRIC Changeoverswitches, Contacts: 9, 20 A, front plate: 0-Auto-Hand ..
$0.00USD
4686 in stock
Key Specifications
Feature Name:Feature Value
Type of switch (EF003496):Reverser
Number of poles (EF001391):0
Front shield size (EF007176):48x48 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Type of switch (EF003496) | Reverser |
| Number of poles (EF001391) | 0 |
| Front shield size (EF007176) | 48x48 mm |
| Device construction (EF008240) | Built-in device |
| Type of control element (EF006976) | Toggle |
| With zero (off) position (EF001416) | Yes |
| Complete device in housing (EF007317) | No |
| Number of switch positions (EF000231) | 4 |
| Rated permanent current Iu (EF001389) | 20 A |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| With retraction in 0-position (EF002428) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Suitable for intermediate mounting (EF007264) | No |
| Width in number of modular spacings (EF002950) | 0 |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
| Suitable for distribution board installation (EF007262) | No |
Product Description
Switch Switch; 9-pole; 20a; rating Plate: 0-Auto-Hand 1-Hand 2; 45 °; flush Mount
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
