T0-2-39/E

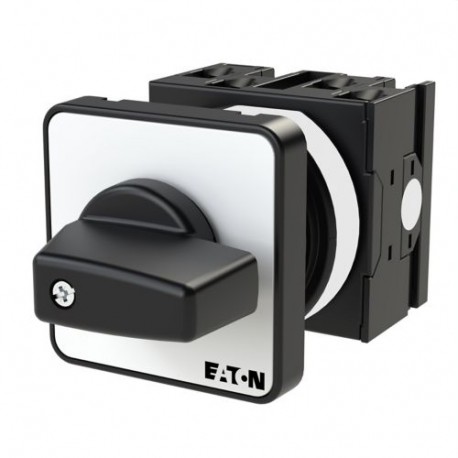

T0-2-39/E 011558 Y7-11558 EATON ELECTRIC Multi-speed switches, Contacts: 4, 20 A, 2 speeds, 2 separate windi..
$0.00USD
3324 in stock
Key Specifications
Feature Name:Feature Value
Model (EF000010):Pole switch
Number of poles (EF001391):2
Housing material (EF001596):Plastic
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Model (EF000010) | Pole switch |
| Number of poles (EF001391) | 2 |
| Housing material (EF001596) | Plastic |
| Type of control element (EF006976) | Short thumb-grip |
| With zero (off) position (EF001416) | No |
| Complete device in housing (EF007317) | No |
| Rated permanent current Iu (EF001389) | 20 A |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| With retraction in 0-position (EF002428) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 11.5 A |
| Suitable for distribution board installation (EF007262) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
Switch Multi-speed; 4-pole; 20; 2 speeds; 2 separate windings; rating Plate: 1-2; 90 °; Latch; flush Mount
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
