SUBCON-PLUS-PROFIB/35/M12

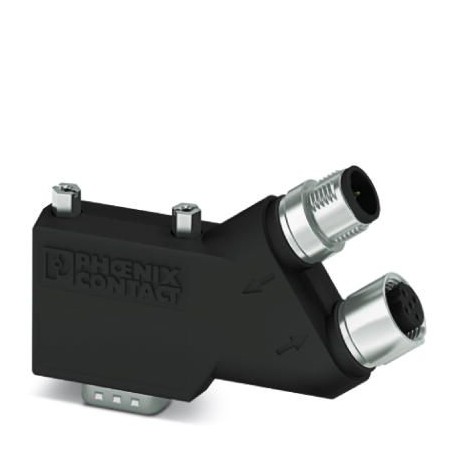

SUBCON-PLUS-PROFIB/35/M12 2902320 PHOENIX CONTACT D-SUB bus connector
$0.00USD
4001 in stock
Key Specifications
GTIN:4046356655064
Orderkey:2902320
Catalog page:Page 373 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356655064 |
| Orderkey | 2902320 |
| Catalog page | Page 373 (C-6-2017) |
| Packing unit | 1 pc |
| Torque (General) | 0.4 Nm |
| Country of origin | CN (China) |
| Connection (General) | M12 socket |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| MTTF (Ambient conditions) | 6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Connection method (General) | M12 connector, B-coded |
| Signal (Ambient conditions) | PROFIBUS |
| Width (Key Commercial Data) | 16 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 46 mm |
| Length (Key Commercial Data) | 79 mm |
| Number of positions (General) | 5 |
| Termination resistor (General) | separately via M12 termination resistor |
| Bus system (Ambient conditions) | PROFIBUS DP |
| Degree of protection (Dimensions) | IP40 |
| Noxious gas test (Connection data) | ISA-S71.04-1985 G3 Harsh Group A |
| Pin assignment (Ambient conditions) | 3, 5, 6, 8 |
| Weight per Piece (excluding packing) | 67.500 g |
| Housing material (Ambient conditions) | Polyamide |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Tightening torque (Ambient conditions) | 0.4 Nm |
| SUBCON fixing screws (Ambient conditions) | 4-40 UNC |
| Ambient temperature (assembly) (Dimensions) | -20 °C ... 80 °C |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 80 °C |
| Permissible humidity (operation) (Dimensions) | 10 % ... 75 % (At +25°C, non-condensing) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
Product Description
D-SUB connector, 9 poles, pin, assignment: 3, 5, 6, 8; two M12 cable glands (B-coding) under 35°. Bus system: PROFIBUS DP up to 12 MBits/s. Closing resistance by means of a separate M12 terminator.
