SUBCON-PLUS-MODBUS/IL/BK

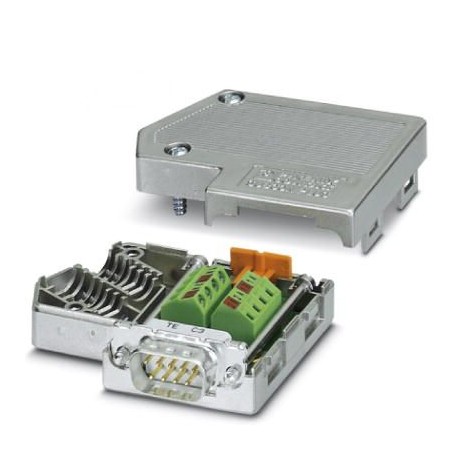

SUBCON-PLUS-MODBUS/IL/BK 2310808 PHOENIX CONTACT D-SUB bus connector
$0.00USD
4476 in stock
Key Specifications
GTIN:4046356124461
Orderkey:2310808
(General):470 Ω (Can be connected externally)
Catalog page:Page 132 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356124461 |
| Orderkey | 2310808 |
| (General) | 470 Ω (Can be connected externally) |
| Catalog page | Page 132 (C-6-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Connection (General) | PCB connection |
| Custom tariff number | 85366990 |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| Stripping length (General) | 5 mm |
| Connection method (General) | Screw connection |
| Signal (Ambient conditions) | Modbus |
| Tightening torque (General) | 0.4 Nm |
| Width (Key Commercial Data) | 16 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 49.5 mm |
| Length (Key Commercial Data) | 60 mm |
| Number of positions (General) | 9 |
| Termination resistor (General) | 150 Ω (Can be connected externally) |
| Degree of protection (Dimensions) | IP40 |
| Noxious gas test (Connection data) | ISA-S71.04-1985 G3 Harsh Group A |
| Pin assignment (Ambient conditions) | 3, 5, 6, 8 |
| Weight per Piece (excluding packing) | 41.800 g |
| Housing material (Ambient conditions) | ABS, metal-plated |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Tightening torque (Ambient conditions) | 0.4 Nm |
| Nominal current IN (Ambient conditions) | 100 mA |
| Nominal voltage UN (Ambient conditions) | 5 V |
| Max. cable diameter (Key Commercial Data) | 10 mm |
| Min. cable diameter (Key Commercial Data) | 7.6 mm |
| SUBCON fixing screws (Ambient conditions) | 4-40 UNC |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 26 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 75 °C |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.14 mm² |
| Conductor cross section flexible max. (General) | 1 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Insertion/withdrawal cycles (Ambient conditions) | > 200 |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 80 °C |
| Free from substances that could impair the application of coating (Connection data) | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
Product Description
D-SUB connector, 9 poles, male, two cable entries at 35°, bus system: For Modbus RTU/ASCII Inline bus coupler, locking resistor connectable via slide switch, pin occupancy: 3, 5, 6, 8; screw connectio
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
