SUBCON-PLUS-CAN/35/M12

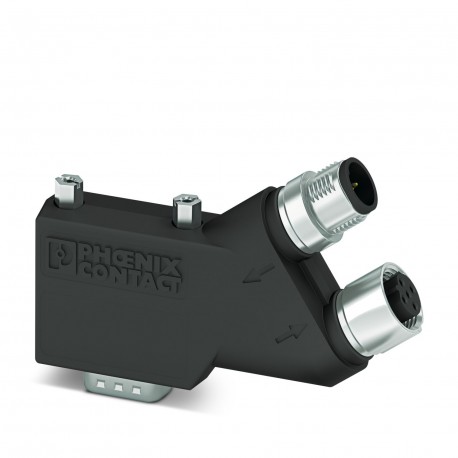

SUBCON-PLUS-CAN/35/M12 2902325 PHOENIX CONTACT D-SUB bus connector
$0.00USD
3260 in stock
Key Specifications
:1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF:6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Width:16 mm
Height:46 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| MTTF | 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Width | 16 mm |
| Height | 46 mm |
| Length | 79 mm |
| Signal | CAN |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Bus system | CAN, CANopen, SafetyBus-P |
| Product type | Data plug |
| Pin assignment | 2, 3, 5, 7, 9 |
| Article revision | 03 |
| Connection method | D-SUB socket |
| Tightening torque | ... 0.4 Nm |
| Material (Housing) | Polyamide |
| Nominal current IN | 100 mA |
| Nominal voltage UN | 5 V |
| Dimensional drawing | |
| Note on application | Only for industrial use |
| Degree of protection | IP40 |
| Ambient temperature (assembly) | -20 °C ... 80 °C |
| Ambient temperature (operation) | -30 °C ... 80 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 |
Product Description
D-SUB connector, 9 poles, female connector, mapping: 2, 3, 5, 6, 7, 9; two M12 cable glands (A-coding) under 35°. Bus system: CAN, CANopen. Closing resistance by means of a separate M12 terminator.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
