SUBCON-PLUS 9/F 2744241 PHOENIX CONTACT D-SUB bus connector
$0.00USD
4334 in stock
Key Specifications
:1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF:6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Note:Please follow the special installation instructions in the documentation!
Width:16 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| MTTF | 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Note | Please follow the special installation instructions in the documentation! |
| Width | 16 mm |
| Height | 44 mm |
| Length | 60 mm |
| Signal | RS-485 |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Bus system | Universal type for all systems |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Certificate | PxCIF15ATEX2744241X |
| Product type | Data plug |
| Identification | II 3 G Ex ec IIC T4 Gc |
| Pin assignment | All connections are 1:1 on the screw terminal block |
| Article revision | 09 |
| Stripping length | 5 mm |
| Connection method | D-SUB socket |
| Material (Housing) | ABS (metal-plated) |
| Nominal current IN | 100 mA |
| Nominal voltage UN | 50 V DC |
| Dimensional drawing | |
| Transmission medium | Copper |
| Degree of protection | IP20 |
| External cable diameter | 6 mm ... 10 mm (Incoming bus line) |
| Insertion/withdrawal cycles | > 200 |
| Ambient temperature (operation) | -20 °C ... 75 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Conductor cross section, rigid max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Max. AWG conductor cross section, flexible | 18 |
| Min. AWG conductor cross section, flexible | 26 |
| Single-wire/terminal point, rigid AWG max. | 16 |
| Single-wire/terminal point, rigid AWG min. | 26 |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 |
Product Description

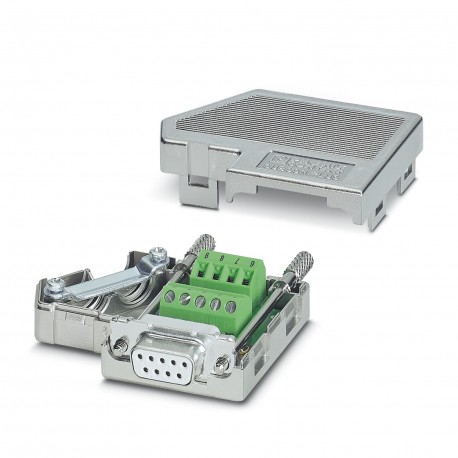

D-SUB connector, 9-pole female connector, two cable entries under 35°, universal model for all systems, pin occupancy: 1, 2, 3, 4, 5, 6, 7, 8, 9 on a screw connection terminal
