In Stock Hot Product
STN0,2(*/*)

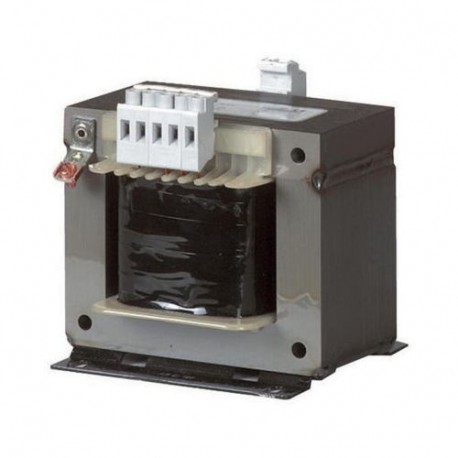

STN0,2(*/*) 204950 Y7-204950 EATON ELECTRIC Control transformer, 200VA, 1p, non-standard voltage
$0.00USD
3767 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):83 mm
Width (EF000008):106 mm
Height (EF000040):112 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 83 mm |
| Width (EF000008) | 106 mm |
| Height (EF000040) | 112 mm |
| Ring core (EF006170) | No |
| Modular version (EF001126) | No |
| Primary voltage 1 (EF006125) | 100 V |
| Primary voltage 2 (EF006126) | 0 V |
| Primary voltage 3 (EF006127) | 0 V |
| Primary voltage 4 (EF007410) | 0 V |
| Primary voltage 5 (EF007411) | 0 V |
| Primary voltage 6 (EF007412) | 0 V |
| Primary voltage 7 (EF007413) | 0 V |
| Primary voltage 8 (EF007414) | 0 V |
| Primary voltage 9 (EF007415) | 0 V |
| Conductor material (EF001622) | Copper |
| Primary voltage 10 (EF007409) | 0 V |
| Secondary voltage 1 (EF007472) | 12 V |
| Secondary voltage 2 (EF007474) | 0 V |
| Secondary voltage 3 (EF007475) | 0 V |
| Secondary voltage 4 (EF007476) | 0 V |
| Secondary voltage 5 (EF007477) | 0 V |
| Secondary voltage 6 (EF007478) | 0 V |
| Secondary voltage 7 (EF007479) | 0 V |
| Secondary voltage 8 (EF007480) | 0 V |
| Secondary voltage 9 (EF007481) | 0 V |
| Short-circuit-proof (EF007332) | No |
| Rated apparent power (EF008864) | 200 VA |
| Secondary voltage 10 (EF007473) | 0 V |
| Degree of protection (IP) (EF005474) | IP00 |
| Built as safety transformer (EF007235) | No |
| Suitable for mounting on PCB (EF006157) | No |
| Built as isolating transformer (EF007238) | No |
| Relative short circuit voltage (EF007452) | 6.8 % |
| Power consumption in standby mode (EF012331) | 9 W |
| Built as energy saving transformer (EF007005) | No |
| Type of insulation material according to IEC 85 (EF007299) | B |
Product Description
STN0,2(*/*)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
