ST-REL3-SG110/21

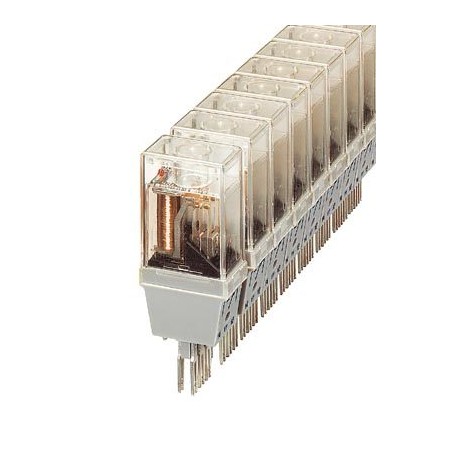

ST-REL3-SG110/21 2822037 PHOENIX CONTACT Relay connectors
$0.00USD
3650 in stock
Key Specifications
GTIN:4017918077181
Note:Made to Order (non-returnable)
Orderkey:2822037
(General):DIN VDE 0160 (in relevant parts)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918077181 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2822037 |
| (General) | DIN VDE 0160 (in relevant parts) |
| (Coil side) | 500 VA (for 250 V AC) |
| Catalog page | Page 81 (IF-2002) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85364900 |
| Contact type (Coil side) | Single contact, 1-PDT |
| Depth (Key Commercial Data) | 66.5 mm |
| Width (Key Commercial Data) | 20.8 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact material (Coil side) | Ag, gold-flashed |
| Height (Key Commercial Data) | 33 mm |
| Operating mode (Contact side) | 100% operating factor |
| Net weight (SAP) (Contact side) | 45.5 g |
| Standards/regulations (General) | DIN VDE 0110b, Gr. C for 250 V DC |
| Maximum inrush current (Coil side) | 5 A |
| Type of switch contact (Coil side) | Single contact |
| Weight per Piece (excluding packing) | 45.500 g |
| Maximum switching voltage (Coil side) | 250 V AC/DC |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mechanical service life (Contact side) | approx. 107cycles (approx. 106with AC relay) |
| Limiting continuous current (Coil side) | 5 A |
| Protective circuit (Ambient conditions) | Damping diode, polarity protection Damping diode, polarity protection diode |
| Typical release time (Ambient conditions) | 15 ms (with DC) |
| Typical response time (Ambient conditions) | 8 ms (with DC) |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Nominal input voltage UN (Ambient conditions) | 110 V DC |
| Operating voltage display (Ambient conditions) | yes |
| Typical input current at UN (Ambient conditions) | 5.5 mA |
| Interrupting rating (ohmic load) max. (Coil side) | 120 W (at 24 V DC) |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Test voltage relay winding/relay contact (Contact side) | 1 kV AC (50 Hz, 1 min.) |
| Input voltage range in reference to UN (Ambient conditions) | 0.8 ... 1.1 |
| Power dissipation for nominal condition (Ambient conditions) | 0.61 W |
