ST-REL3-SG 24/21

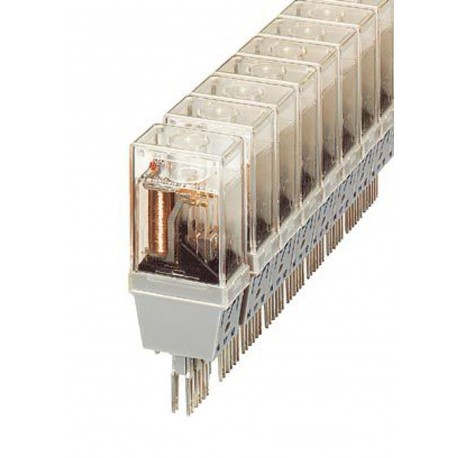

ST-REL3-SG 24/21 2822011 PHOENIX CONTACT Relay connectors
$0.00USD
3699 in stock
Key Specifications
:60 W (at 48 V DC)
Color:transparent
Depth:66.5 mm
Width:20.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 60 W (at 48 V DC) | |
| Color | transparent |
| Depth | 66.5 mm |
| Width | 20.8 mm |
| Height | 33 mm |
| Product type | Relay Module |
| Mounting type | Plug-in mounting |
| Operating mode | 100% operating factor |
| Article revision | 05 |
| Contact material | Ag, gold-flashed |
| Drive and function | monostable |
| Protective circuit | Damping diode, polarity protection; Damping diode, polarity protection diode |
| Input voltage range | 19.2 V DC ... 26.4 V DC (20 °C) |
| Typical release time | 15 ms (with DC) |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| Typical response time | 8 ms (with DC) |
| Contact switching type | Single contact, 1 changeover contact |
| Maximum inrush current | 5 A |
| Type of switch contact | Single contact |
| Mechanical service life | approx. 107cycles (approx. 106with AC relay) |
| Nominal input voltage UN | 24 V DC |
| Maximum switching voltage | 250 V AC/DC |
| Operating voltage display | yes |
| Limiting continuous current | 5 A |
| Typical input current at UN | 32 mA |
| Date of last data management | 20.04.2023 |
| Test voltage (Winding/contact) | 1 kV AC (50 Hz, 1 min., winding/contact) |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Maximum power dissipation for nominal condition | 0.77 W |
Product Description
Plug-in relay bracket, equipped with Siemens-KAMMRELAIS®, contacts (Ag): Medium powers, 1 switched contact, input voltage 24 V DC, with light display, pluggable into base terminal blocks
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
