ST-OV4- 24DC/ 24DC/1-PRO

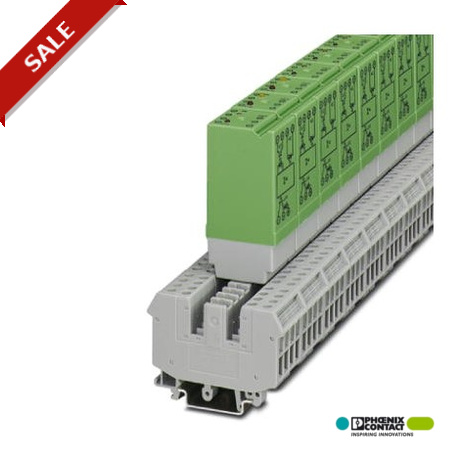

ST-OV4- 24DC/ 24DC/1-PRO 2905572 PHOENIX CONTACT Plug-in power protective circuit solid-state relay, with si..
$0.00USD
3224 in stock
Key Specifications
:Free-wheeling diode
Depth:114 mm
Width:27 mm
Height:63.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Free-wheeling diode | |
| Depth | 114 mm |
| Width | 27 mm |
| Height | 63.5 mm |
| Indication | Red LED |
| Output circuit | 3-conductor, ground-referenced |
| Status display | Yellow LED |
| Min. load current | 1 mA |
| Mounting position | any |
| Type of protection | Protection against polarity reversal |
| Output voltage range | 18 V DC ... 36 V DC |
| Assembly instructions | In rows with zero spacing |
| Standards/regulations | IEC 60664 |
| Typical response time | 300 µs |
| Typical turn-off time | 700 µs |
| Transmission frequency | 100 Hz |
| Nominal input voltage UN | 24 V DC ± 50% |
| Operating voltage display | Yellow LED |
| Test voltage input/output | 2.5 kV AC |
| Test voltage output/output | 2.5 kV AC |
| Limiting continuous current | 1 A (see derating curve) |
| Typical input current at UN | 6.5 mA |
| Protective circuit/component | Polarity protection diode |
| Rated surge voltage/insulation | Basic insulation |
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Current limitation at short-circuits | approx. 25 A |
| Switching threshold "1" signal voltage | 8.5 V DC |
| Ambient temperature (storage/transport) | 0 °C ... 70 °C |
| Switching threshold "0" signal, voltage | 5 V DC |
| Voltage drop at max. limiting continuous current | 300 mV |
