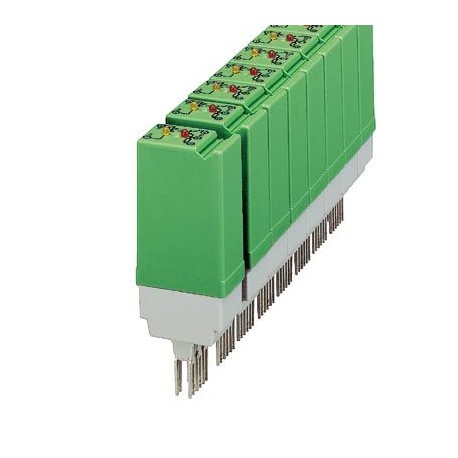

ST-OV3- 12DC/ 24DC/2 2905187 PHOENIX CONTACT Solid-state relays
$0.00USD
3250 in stock
Key Specifications
GTIN:4017918079321
Note:Made to Order (non-returnable)
Orderkey:2905187
Catalog page:Page 91 (IF-2005)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918079321 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2905187 |
| Catalog page | Page 91 (IF-2005) |
| Depth (Note) | 66.5 mm |
| Packing unit | 10 pc |
| Width (Note) | 20.8 mm |
| (Input data) | Damping diode |
| Height (Note) | 33 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85364190 |
| (Ambient conditions) | Surge protection |
| Output circuit (Input data) | 3-conductor, ground-referenced |
| Status display (Input data) | LED red |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mounting position (Output data) | any |
| Standards/regulations (General) | DIN VDE 0110 |
| Type of protection (Input data) | Reverse polarity protection |
| Output voltage range (Input data) | 10 V DC ... 30 V DC |
| Peak offstate voltage (Input data) | 35 V DC (Collector-emitter reverse voltage) |
| Standards/regulations (Output data) | DIN VDE 0110 |
| Status display (Ambient conditions) | Yellow LED |
| Weight per Piece (excluding packing) | 30.230 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Test voltage input/output (Output data) | 2.5 kV AC |
| Type of protection (Ambient conditions) | Reverse polarity protection |
| Input voltage range (Ambient conditions) | 9.6 V DC ... 14.4 V DC |
| Limiting continuous current (Input data) | 2 A (see derating curve) |
| Protective circuit/component (Input data) | Polarity protection diode |
| Typical response time (Ambient conditions) | 17 µs |
| Typical turn-off time (Ambient conditions) | 104 µs |
| Transmission frequency (Ambient conditions) | 1000 Hz |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Nominal input voltage UN (Ambient conditions) | 12 V DC |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Typical input current at UN (Ambient conditions) | 5 mA |
| Protective circuit/component (Ambient conditions) | Polarity protection diode |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Input voltage range in reference to UN (Ambient conditions) | 0.8 ... 1.2 |
| Switching threshold "1" signal voltage (Ambient conditions) | ≥ 4.8 V |
| Switching threshold "0" signal, voltage (Ambient conditions) | ≤ 4.2 V |
| Voltage drop at max. limiting continuous current (Input data) | 1.5 V |
Product Description
Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 12 V DC, output: short circuit resistance, 10-30 V DC/max. 2 A, pluggable to base ter
