ST-5EP1N8ACK03S

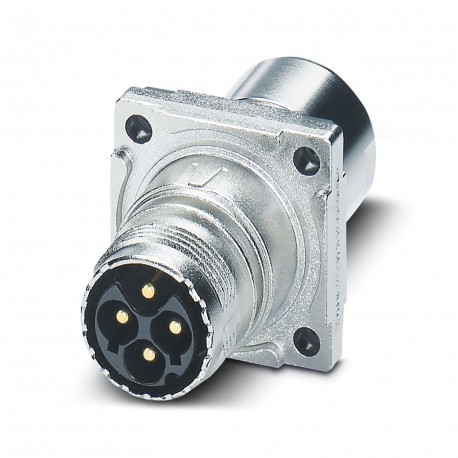

ST-5EP1N8ACK03S 1618768 PHOENIX CONTACT Panel feed-through
$0.00USD
3603 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Type:straight
Coding:N
Series:ST
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Type | straight |
| Coding | N |
| Series | ST |
| Mounting | 4x Ø 3.2 |
| Shielded | yes |
| Application | Power |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M17 |
| Max. current | 14 A |
| Product type | Circular connectors (device side) |
| Article revision | 11 |
| Contact diameter | 1 mm |
| Connection method | Crimp connection |
| Flange dimensions | 25.75 mm x 25.75 mm |
| Connection profile | 5+PE |
| Nominal voltage UN | 630 V |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 6 |
| Rated surge voltage | 6 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact connection type | Pin |
| External cable diameter | 5 mm ... 9 mm |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
Product Description
Cable pass-through, straight, SPEEDCON, M17, number of poles: 5+PE, contact type: Male, Flat joint, 4x Ø 3.2, shielded: yes, flange size: 25.75 mm x 25.75 mm, protection index: IP67, cable diameter ra
