ST 4-PCB/ 3-G-6,2

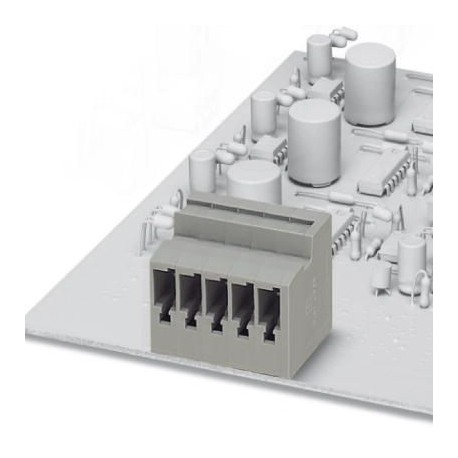

ST 4-PCB/ 3-G-6,2 1980608 PHOENIX CONTACT Feed-through header
$0.00USD
3315 in stock
Key Specifications
GTIN:4017918972271
Note:Made to Order (non-returnable)
Orderkey:1980608
Catalog page:Page 300 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918972271 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1980608 |
| Catalog page | Page 300 (C-1-2017) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | gray |
| Custom tariff number | 85366930 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 6.2 mm |
| Width (Key Commercial Data) | 20.65 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 25.95 mm |
| Length (Key Commercial Data) | 25.1 mm |
| Range of articles (Dimensions) | ST 4-PCB/..-G |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 3 |
| Maximum load current (Dimensions) | 32 A (with 6 mm² conductor cross section) |
| Width [ w ] (Key Commercial Data) | 20.65 mm |
| Height [ h ] (Key Commercial Data) | 29.45 mm |
| Length [ l ] (Key Commercial Data) | 25.1 mm |
| Weight per Piece (excluding packing) | 9.530 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Internal cylindrical gage (Dimensions) | A4 |
| Connection in acc. with standard (General) | CUL |
| Length of the solder pin (Key Commercial Data) | 3.5 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
ST-COMBI coupling, horizontal connection direction to the printed circuit board, pitch: 6.2 mm, number of poles: 3
