ST 35

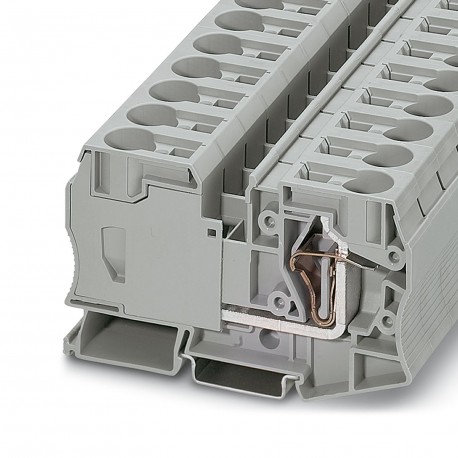

ST 35 3036178 PHOENIX CONTACT Feed-through terminal block
$21.68USD
508 in stock
Key Specifications
:3022276 CLIPFIX 35-5
Note:The supply from the ST 35 terminal block to the ST 16 TWIN terminal block with the RB-ST 35 reducing bridge is single-sided only.In the case of a central supply, the D-ST 16-TWIN cover cannot be bridged via the reducing bridge.
Color:gray (RAL 7042)
Width:16 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 3022276 CLIPFIX 35-5 | |
| Note | The supply from the ST 35 terminal block to the ST 16 TWIN terminal block with the RB-ST 35 reducing bridge is single-sided only.In the case of a central supply, the D-ST 16-TWIN cover cannot be bridged via the reducing bridge. |
| Color | gray (RAL 7042) |
| Width | 16 mm |
| Height | 100 mm |
| Result | Test passed |
| output | (Permanent) |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Potentials | 1 |
| Bridge data | 85.5 A / 35 mm² |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 3.12g |
| Product type | Feed-through terminal block |
| Mounting type | NS 35/7,5 |
| Rated current | 107.5 A |
| Rated voltage | 690 V |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Identification | II 2 GD Ex eb IIC Gb |
| Number of rows | 1 |
| Product family | ST |
| Rotation speed | 10 rpm |
| Shock duration | 18 ms |
| List of bridges | Plug-in bridge / FBS 2-16 / 3005963 |
| Nominal current | 125 A |
| Nominal voltage | 1000 V |
| Open side panel | No |
| Test directions | X-, Y- and Z-axis |
| Article revision | 14 |
| Stripping length | 25 mm |
| Time of exposure | 30 s |
| Cross section AWG | 12 ... 2 (converted acc. to IEC) |
| Contact resistance | 0.21 mΩ |
| Depth on NS 35/15 | 66.5 mm |
| Temperature cycles | 192 |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 59 mm |
| Insulating material | PA |
| Rated surge voltage | 8 kV |
| Test force setpoint | 10 N |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 35 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 9.8 kV |
| Test duration per axis | 5 h |
| Connection capacity AWG | 14 ... 2 |
| DIN rail/fixing support | NS 35 |
| Ex temperature increase | 40 K (118.6 A / 35 mm²) |
| Rated cross section AWG | 2 |
| Ex-certified accessories | 1206612 SZF 3-1,0X5,5 |
| Rated insulation voltage | 630 V |
| for bridging with bridge | 690 V |
| Connection capacity rigid | 2.5 mm² ... 35 mm² |
| Insulating material group | I |
| Internal cylindrical gage | A8 |
| Operating temperature range | -60 °C ... 110 °C |
| Connection capacity flexible | 2.5 mm² ... 35 mm² |
| Conductor cross section rigid | 2.5 mm² ... 35 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 2.5 mm² / 0.7 kg |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 2.5 mm² ... 35 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 35 mm² | 4.2 kA |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Conductor cross section, flexible [AWG] | 12 ... 2 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 4.06 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 35 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 2.5 mm² ... 35 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 2.5 mm² ... 10 mm² |
Product Description
Feed-through terminal, nominal voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection type: Spring connection, 1st floor, Dimensioning cross-section: 35 mm², cross-section: 2.5
