ST 2,5-TWIN-MT OG

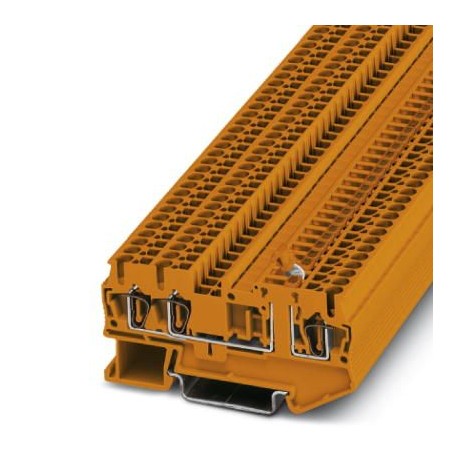

ST 2,5-TWIN-MT OG 3037889 PHOENIX CONTACT Knife disconnect terminal block
$0.00USD
3406 in stock
Key Specifications
GTIN:4017918936846
Note:Made to Order (non-returnable)
Orderkey:3037889
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918936846 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3037889 |
| Packing unit | 50 pc |
| Width (General) | 5.2 mm |
| Length (General) | 72 mm |
| Country of origin | DE (Germany) |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 50 pc |
| Height NS 35/15 (General) | 44 mm |
| Height NS 35/7,5 (General) | 36.5 mm |
| Color (Key Commercial Data) | orange |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 8 mm ... 10 mm |
| Connection method (Dimensions) | Spring-cage connection |
| Weight per Piece (excluding packing) | 9.090 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | A3 |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 20 A (with 4 mm² conductor cross section) |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 20 A (with 4 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 2.5 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 12 |
| Conductor cross section AWG min. (Dimensions) | 28 |
| Conductor cross section solid max. (Dimensions) | 4 mm² |
| Conductor cross section solid min. (Dimensions) | 0.08 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.08 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.14 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.14 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 0.5 mm² |
Product Description
Blade interruptible terminal block, nominal voltage: 400 V, nominal current: 20 A, 1st floor, connection type: Spring connection, Dimensioning cross-section: 2.5 mm², cross-section: 0.08 mm² - 4 mm²,
