ST 2,5-QUATTRO-TG

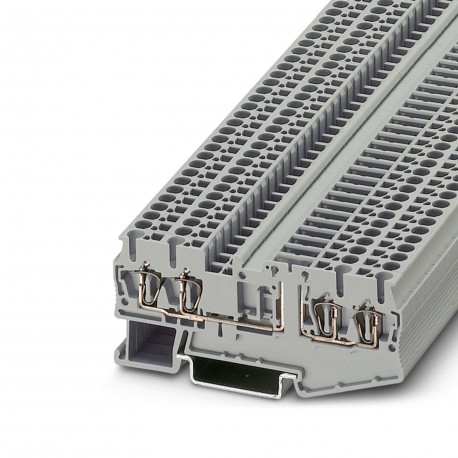

ST 2,5-QUATTRO-TG 3038451 PHOENIX CONTACT Disconnect terminal block
$3.17USD
3187 in stock
Key Specifications
:Machine building
Note:The max. load current must not be exceeded by the total current of all connected conductors.
Color:gray (RAL 7042)
Width:5.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Machine building | |
| Note | The max. load current must not be exceeded by the total current of all connected conductors. |
| Color | gray (RAL 7042) |
| Width | 5.2 mm |
| Height | 84 mm |
| Result | Test passed |
| General | The max. load current must not be exceeded by the total current of all connected conductors.Current and voltage are determined by the plug used. |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 3.12g |
| Product type | Disconnect terminal block |
| Mounting type | NS 35/7,5 |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| Number of rows | 1 |
| Rotation speed | 10 (+/- 2) rpm |
| Shock duration | 30 ms |
| End cover width | 2.2 mm |
| Nominal voltage | 400 V (voltage is determined by the plug used) |
| Open side panel | Yes |
| Test directions | X-, Y- and Z-axis |
| Article revision | 06 |
| Stripping length | 8 mm ... 10 mm |
| Time of exposure | 30 s |
| Cross section AWG | 28 ... 12 (converted acc. to IEC) |
| Depth on NS 35/15 | 44 mm |
| Temperature cycles | 192 |
| Area of application | Railway industry |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 36.5 mm |
| Insulating material | PA |
| Rated surge voltage | 6 kV |
| Test force setpoint | 1 N |
| Maximum load current | 20 A (with 4 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Number of connections | 4 |
| Test voltage setpoint | 6 kV |
| Test duration per axis | 5 h |
| Insulating material group | I |
| Internal cylindrical gage | A3 |
| Conductor cross section rigid | 0.08 mm² ... 4 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.08 mm² / 0.1 kg |
| Number of shocks per direction | 3 |
| Thermal continuous current Ith | 20 A (with 4 mm² conductor cross section) |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 4 |
| Conductor cross section flexible | 0.08 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 28 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.77 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
Product Description
Interruptible terminal block, The maximum load current must not be exceeded by the sum current of all connected conductors. The current and voltage are determined by the connector used., rated voltage
