ST-17P1N8ACK03S

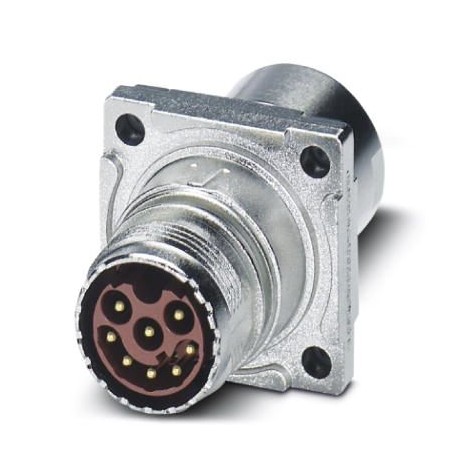

ST-17P1N8ACK03S 1617872 PHOENIX CONTACT Panel feed-through
$25.64USD
433 in stock
Key Specifications
GTIN:4046356708852
Note:Made to Order (non-returnable)
Orderkey:1617872
Catalog page:Page 62 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356708852 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1617872 |
| Catalog page | Page 62 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -40 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Installation height max. (Material) | 3000 m |
| Mounting type (Key Commercial Data) | 4x Ø 3.2 |
| Contact surface (Ambient conditions) | AU |
| Weight per Piece (excluding packing) | 44.000 g |
| Conductor entry (Key Commercial Data) | 5 mm ... 9 mm |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | GD-Zn |
| Type of locking (Key Commercial Data) | SPEEDCON locking |
| Type of contacts (Key Commercial Data) | Pin |
| Insulator material (Ambient conditions) | PA 6.6 |
| Number of positions (Key Commercial Data) | 17 |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Gasket and O-ring material (Ambient conditions) | FKM |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Degree of pollution of power contacts (Material) | 3 |
| Rated surge voltage of power contacts (Material) | 1.5 kV |
| Overvoltage category of power contacts (Material) | II |
| Pg housing screw connection (Key Commercial Data) | none |
| Contact diameter of power contacts (Key Commercial Data) | 0.6 mm |
| Nominal / operating voltage of power contacts (Material) | 60 V |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 3.6 A |
| Direction of rotation of contact chamber numbering (Key Commercial Data) | Standard |
Product Description
Feedthrough, SPEEDCON, M17, number of poles: 17, contact type: Male, Flat joint, 4x Ø 3.2, shielded: yes, flange size: 25.75 mm x 25.75 mm, protection index: IP67, cable diameter range: 5 mm ... 9 mm,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
