ST-17P1N8A9K05S

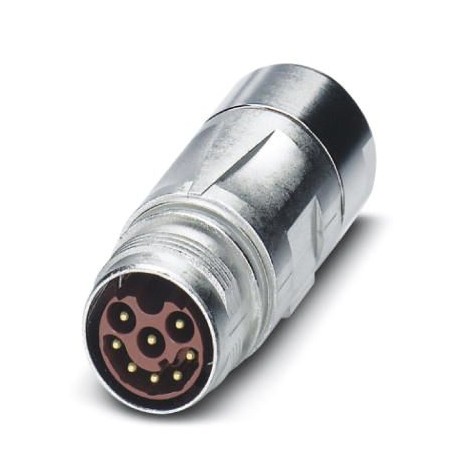

ST-17P1N8A9K05S 1617795 PHOENIX CONTACT Coupler connector
$0.00USD
4777 in stock
Key Specifications
GTIN:4046356708753
Note:Made to Order (non-returnable)
Orderkey:1617795
Catalog page:Page 166 (NTK-2012)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356708753 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1617795 |
| Catalog page | Page 166 (NTK-2012) |
| Packing unit | 30 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -40 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Weight per Piece (excluding packing) | 39.000 g |
| Conductor entry (Key Commercial Data) | 11 mm ... 12.7 mm |
| Type of locking (Key Commercial Data) | SPEEDCON locking |
| Type of contacts (Key Commercial Data) | Pin |
| Number of positions (Key Commercial Data) | 17 |
| Installation height max. (Ambient conditions) | 3000 m |
| Contact connection method (Key Commercial Data) | Crimp connection |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | none |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| Degree of pollution of power contacts (Ambient conditions) | 3 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Rated surge voltage of power contacts (Ambient conditions) | 1.5 kV |
| Overvoltage category of power contacts (Ambient conditions) | II |
| Nominal current per power contact at 25°C (Key Commercial Data) | 3.6 A |
| Nominal / operating voltage of power contacts (Ambient conditions) | 60 V |
| Direction of rotation of contact chamber numbering (Key Commercial Data) | Standard |
Product Description
Plug-in coupling connector, straight, for standard lock and SPEEDCON, M17, number of poles: 17, contact type: Pin, shielded: yes, cable diameter range: 11 mm ... 12.7 mm, number of poles: 17, connecti
