ST-10KP010

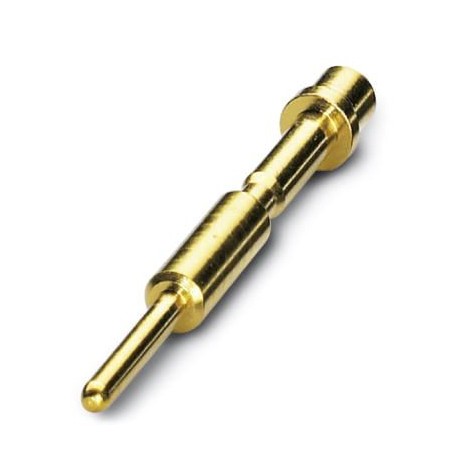

ST-10KP010 1618255 PHOENIX CONTACT Crimp contact
$0.74USD
13563 in stock
Key Specifications
GTIN:4046356736435
Note:Made to Order (non-returnable)
Orderkey:1618255
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356736435 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1618255 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 71 (C-2-2017) |
| Packing unit | 100 pc |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85389099 |
| REACh SVHC (General) | Lead 7439-92-1 |
| Minimum order quantity | 100 pc |
| Contact type (Key Commercial Data) | turned |
| Weight per Piece (excluding packing) | 0.290 g |
| Contact surface (Key Commercial Data) | Nickel-plated (Ni), with gold coating (Au) |
| Type of contact (Key Commercial Data) | Pin |
| Contact diameter (Key Commercial Data) | 1 mm |
| Contact material (Key Commercial Data) | CuZn |
| Connection method (Key Commercial Data) | Crimp connection |
| Litz wire cross section max. (Key Commercial Data) | 0.25 mm² |
| Litz wire cross section min. (Key Commercial Data) | 0.06 mm² |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 100 |
Product Description
Crimp contact, Tap, machined, Single contact, contact diameter: 1 mm, crimping range: 0.06 mm² ... 0.25 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1243215
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
