In Stock Hot Product
SSH/X0-1A

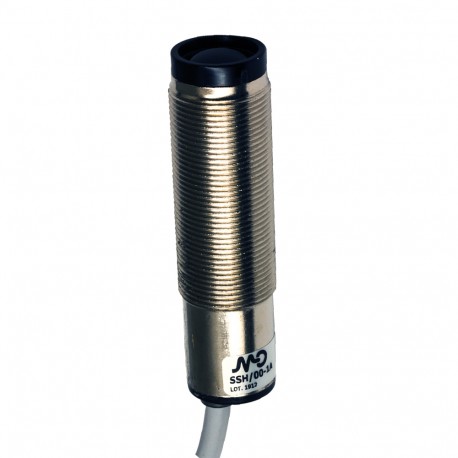

SSH/X0-1A MICRO DETECTORS Photoelectric sensor Emitter 14 m, with check, metal cable 2m axial
$0.00USD
3273 in stock
Key Specifications
Weight:130g
Emission:Infrared (880nm)
Approvals:CE, cULus
Dimensions:M18 x 1/L=63,9mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 130g |
| Emission | Infrared (880nm) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1/L=63,9mm |
| Check Input | BK/2 connected to 0Vdc swithing off the emission |
| Connections | 2m PVC cable |
| LED indicators | Yellow (powerON) |
| Optic position | Axial |
| Emitter/Receiver | Emitter |
| Housing Material | Nickel plated brass |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 25Nm |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤40mA |
| Nominal sensing distance | 14m |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤200ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
SSH/X0-1A Photoelectric sensor Emitt. 14 m Check metal cable 2m axial
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
