SSF/0P-0E

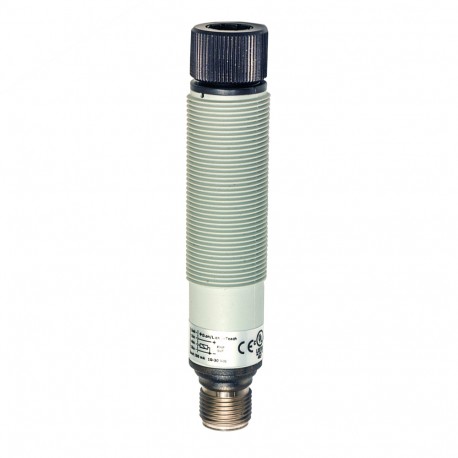

SSF/0P-0E MICRO DETECTORS Fibre amplifier PNP L/D Teach-in plastic plug M12
$0.00USD
4926 in stock
Key Specifications
Weight:30 g
Emission:Red (660nm)
Approvals:CEUL
Dimensions:M18 x 1 / L = 90mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30 g |
| Emission | Red (660nm) |
| Approvals | CEUL |
| Dimensions | M18 x 1 / L = 90mm |
| Connections | M12 Plug |
| Output type | PNP |
| Load current | 100 mA |
| LED indicators | Yellow |
| Leakage current | ≤ 10 µA |
| Output Function | LO / DO selectable |
| Repeat Accuracy | 5% |
| Housing Material | PBT |
| Operating Voltage | 10….30 Vdc |
| Tightening torque | 1 Nm |
| Max ripple content | ≤ 10 % |
| Output voltage drop | 2V max |
| Switching frequency | 800 Hz |
| Thermal drift of Sr | 10 % Sr |
| Active Head Material | Depending on optical fibres |
| Degree of protection | IP67 (EN60529) |
| Supplied Accessories | Plastic nut (2 x) |
| Operating temperature | - 25°C…+ 70°C (without freeze) |
| No-Load supply current | ≤ 20mA |
| Sensitivity adjustment | Teach-in |
| Nominal sensing distance | Depending on optical fibres |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) |
| Time delay before availability | 150 ms |
Product Description
SSF/0P-0E Optical Fibre AmplifierPNP L/D Teach-in plast. conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
