In Stock Hot Product
SRSD1NOW

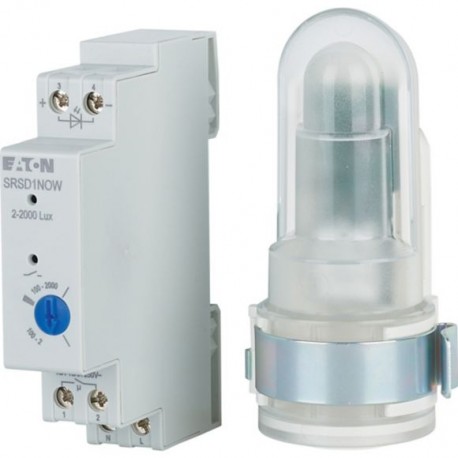

SRSD1NOW 196845 Y7-196845 EATON ELECTRIC Analogue Light intensity switch, DIN rail 1 TE, 1 NO contact, exter..
$0.00USD
3830 in stock
Key Specifications
Feature Name:Feature Value
Rated voltage (EF000228):230 V
Built-in depth (EF000218):65.5 mm
Mounting method (EF000003):DIN rail
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Rated voltage (EF000228) | 230 V |
| Built-in depth (EF000218) | 65.5 mm |
| Mounting method (EF000003) | DIN rail |
| Rated frequency (EF001663) | 50 Hz |
| Push button input (EF005335) | No |
| Rated switch current (EF006706) | 16 A |
| Max. switching power LED (EF015953) | 350 W |
| Degree of protection (IP) (EF005474) | IP55 |
| Max. load fluorescent lamp (EF004971) | 2300 VA |
| Rated voltage light sensor (EF004515) | 0 V |
| Max. incandescent lamp load (EF004952) | 2600 W |
| Mounting method light sensor (EF006710) | Wall surface mounted |
| Protection class light sensor (EF006709) | II |
| Adjustment range brightness value (EF006708) | 2 lx |
| Max. conductor length light sensor (EF004970) | 50 m |
| Width in number of modular spacings (EF002950) | 1 |
| With programmable overnight shutoff (EF005062) | No |
| Degree of protection (IP) light sensor (EF005265) | IP54 |
| Max. switching current (cos phi = 0.6) (EF004920) | 10 A |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 2300 VA |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 730 VA |
Product Description
SRSD1NOW
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
