In Stock Hot Product
SPTAF 1/ 2-5,0-LL

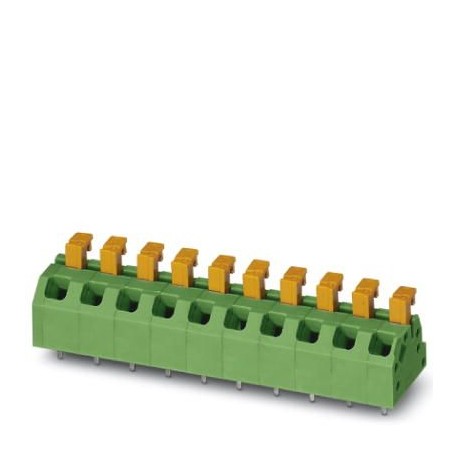

SPTAF 1/ 2-5,0-LL 1864435 PHOENIX CONTACT PCB terminal block
$0.00USD
3233 in stock
Key Specifications
GTIN:4055626246017
Note:Made to Order (non-returnable)
Orderkey:1864435
Packing unit:165 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626246017 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1864435 |
| Packing unit | 165 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | |
| Minimum order quantity | 165 pc |
| (Packaging information) | Following IEC 60068-2-54:2006-04 |
| Voltage (Electrical tests) | 250 V |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Rated current (Pull-out test) | 13.5 A |
| Pitch (Material data - housing) | 5 mm |
| Process (Packaging information) | Wave soldering |
| Rated current (Item properties) | 13.5 A |
| Pin layout (Key Commercial Data) | Linear double pinning |
| Mounting type (Key Commercial Data) | Wave soldering |
| (Termination and connection method) | 1 mm² / flexible / > 35 N |
| Weight per Piece (excluding packing) | 1.200 g |
| Dimension a (Material data - housing) | 5 mm |
| Pin spacing (Material data - housing) | 5 mm |
| Specification (Packaging information) | Following IEC 61760-1:2006-04 |
| Width [ w ] (Material data - housing) | 10 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 13.5 mm |
| Length [ l ] (Material data - housing) | 11 mm |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Push-in spring connection |
| Range of articles (Key Commercial Data) | SPTAF 1/..-LL |
| Pin dimensions (Material data - housing) | 0.75 x 0.3 mm |
| Pin spacing (Dimensions for the product) | 5 mm |
| Solder pin [P] (Material data - housing) | 2.6 mm |
| Stripping length (Electrical parameters) | 8 mm |
| Number of positions (Key Commercial Data) | 2 |
| Hole diameter (Dimensions for the product) | 1.1 mm |
| Rated surge voltage (III/2) (Pull-out test) | 4 kV |
| Insulating material group (Electrical tests) | I |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (II/2) (Electrical tests) | 4 kV |
| Rated surge voltage (III/2) (Item properties) | 4 kV |
| Surface characteristics (Connection capacity) | hot-dip tin-plated |
| Type of packaging (Dimensions for PCB design) | packed in cardboard |
| Pieces per package (Dimensions for PCB design) | 165 |
| Rated surge voltage (III/2) (Electrical tests) | 4 kV |
| Rated surge voltage (III/3) (Electrical tests) | 4 kV |
| Brief article description (Key Commercial Data) | PCB terminal block |
| Diagram (Air clearances and creepage distances) | |
| Outer packaging type (Dimensions for PCB design) | Carton |
| Rated insulation voltage (III/2) (Pull-out test) | 320 V |
| Ambient temperature (assembly) (Processing notes) | -5 °C ... 100 °C |
| Ambient temperature (operation) (Processing notes) | -40 °C |
| Rated insulation voltage (II/2) (Electrical tests) | 630 V |
| Rated insulation voltage (III/2) (Item properties) | 320 V |
| Insulating material group (Material data - contact) | I |
| Rated insulation voltage (III/2) (Electrical tests) | 320 V |
| Rated insulation voltage (III/3) (Electrical tests) | 250 V |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Conductor cross section solid (Electrical parameters) | 0.2 mm² ... 0.75 mm² |
| Height (without solder pin) (Material data - housing) | 10.9 mm |
| Denomination packing units (Dimensions for PCB design) | Pcs. |
| Conductor cross section flexible (Electrical parameters) | 0.2 mm² ... 1 mm² |
| Ambient temperature (storage/transport) (Processing notes) | -40 °C ... 70 °C |
| Conductor cross section AWG / kcmil (Electrical parameters) | 24 ... 18 |
| Metal surface soldering area (top layer) (Connection capacity) | Tin (2 - 4 µm Sn) |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (2 - 4 µm Sn) |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Connection in acc. with standard (Current carrying capacity / derating curves) | EN-VDE |
| Flammability rating according to UL 94 (Current carrying capacity / derating curves) | V0 |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.2 mm² / solid / > 10 N |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.5 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 320 V, nominal section: 1 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, famil
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
