SPPVRT12-15-2+PE

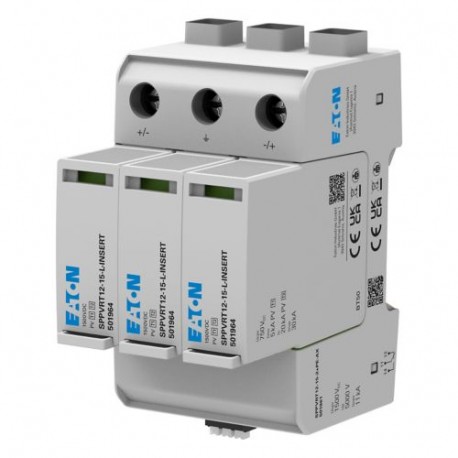

SPPVRT12-15-2+PE EP-501960 Y7-501960 EATON ELECTRIC PV-SPD, 1500V, Class 1 & 2 Combined
$0.00USD
4229 in stock
Key Specifications
Feature Name:Feature Value
Exhausting (EF004181):false
Category type 1 (EF004229):true
Mounting method (EF000003):DIN rail (top hat rail) 35 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Exhausting (EF004181) | false |
| Category type 1 (EF004229) | true |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 3 modular spacing |
| Nominal voltage AC (EF004220) | None V |
| Nominal voltage DC (EF004221) | 1500 V |
| Specific energy (W/R) (EF009797) | 6.25 kJ/Ohm |
| Integrated backup fuse (EF008797) | false |
| System configuration DC (EF009926) | true |
| System configuration IT (EF009927) | false |
| System configuration TN (EF009928) | false |
| System configuration TT (EF009931) | false |
| Signalling at the device (EF004241) | Optical |
| Suitable for outdoor use (EF003532) | false |
| Voltage protection level (EF003525) | 5 kV |
| Degree of protection (IP) (EF005474) | IP20 |
| System configuration TN-C (EF009929) | false |
| System configuration TN-S (EF009930) | false |
| Max. continuous voltage AC (EF004198) | None V |
| Max. continuous voltage DC (EF004777) | 1500 V |
| System configuration other (EF009932) | false |
| System configuration TN-C-S (EF009933) | false |
| Voltage protection level L-N (EF004236) | None kV |
| Voltage protection level N-PE (EF008796) | None kV |
| With remote signalling contact (EF000422) | false |
| Voltage protection level (DC+ - DC-) (EF009643) | 5 kV |
| Lightning impulse current (10/350 µs) (EF000421) | 5 kA |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Follow current extinguishing capability (EF004193) | None kA |
| Number of conductors (without earthing) (EF001148) | 2 |
| Voltage protection level (DC+/DC- - PE) (EF009644) | 5 kV |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
Product Description
PV-Surge protection device, 1500V, class 1 and 2 combined tested
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
