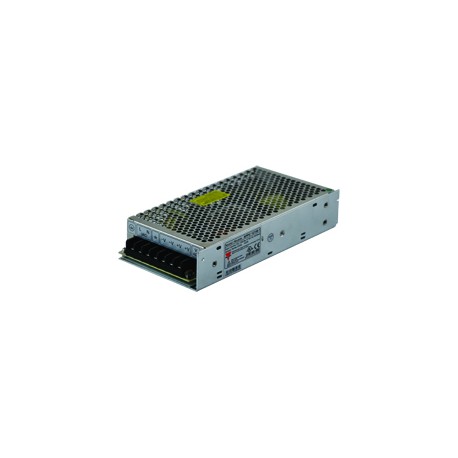

SPPC481501

Switching Power Supply Enclosed Type SPP150 Series Open Cage• AC input selectable by switch(115VAC/230VAC)• High Efficiency, and High reliability• Output protections: OLP/OVP/SCP• Wide operating ambient temperature (-25°C~70°C)• Electrolytic capacitorsProduct DescriptionOrdering KeySP PC XX 150 1Enclosed Switching Power Supply meets your needs for AC DC andDC DC power requirements. SPPprovides the most flexible OEM system power solutions from 5V to 48V at 150W for industrial controlApprovalsand automation applications. All the range carriesfull certification and offers a wide range of universal input and screwterminalconnections. It has been designed for its performance.Power supply model Panel mounted Output voltage Output powerInput type (single phase)E258396Output PerformancesMODEL NO. INPUT VOLTAGEOUTPUT POWEROUTPUT VOLTAGEOUTPUT CURRENTVOLTAGE OUT ADJEFF. (typ.)115VAC 230VACSPPC 5150 1115VAC/230VACSingle Output Modelsselectable by switch 150 WATTS5 VDC 26.0 A4.6VDC ~ 5.5VDC 78% 79%selectable by switch 150 WATTS 12 VDC12.5 A11.0VDC ~ 13.0VDC 83% 84% selectable by switch 150 WATTS 15 VDC10.0 A13.7VDC ~ 16.2VDC 83% 84% selectable by switch 150 WATTS 24 VDC 6.5 A 22.4VDC ~ 27.3VDC 85% 86%selectable by switch 150 WATTS 48 VDC 3.3 A 44.7VDC ~ 51.7VDC 85% 86%Output DataLine regulation± 0.5% Load regulation ±1.0% Minimum load 0ATurn on time (full resistive load)<2.0S (115Vac input, Full load)<1.0S (230Vac input, Full load)Transient recovery time3msOutput voltage accuracy±1.0%±2.0% (on SPPC 5150 1)Temperature coefficient ±0.03%/°CHold up time>10ms(115VAC input, Full load)>20ms(115VAC input, Full load)Voltage fall time (I nom Vi nom) <80msVoltage rise timeVi nom, Io nom150ms Vi nom, Io nom with 3500μF CAP 500ms Voltage trim range5V Model 4.6 VDC ~ 5.5 VDC12V Model 11.0 VDC ~ 13.0 VDC15V Model 13.7 VDC ~ 16.2 VDC24V Model 22.4 VDC ~ 27.3 VDC48V Model 44.7 VDC ~ 51.7 VDCRated continuous loading5V Model 26.0A12V Model 12.5A15V Model 10.0A24V Model 6.5A48V Model 3.3A1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 24/10/2013
