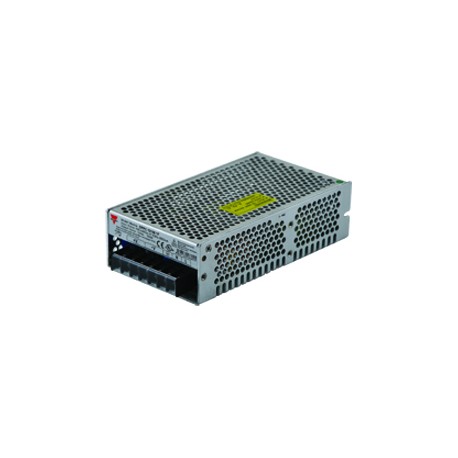

SPPC241501F

Switching Power SupplyEnclosed Type SPPC 150 1F SeriesOpen Cage• Universal AC input full range• Built-in active PFC function, PF> 0.95• High Efficiency, and High reliability• All using 105°C long life electrolytic capacitors• 100% full load burn-in test• High efficiencyProduct DescriptionOrdering KeySP PC XX 150 1 FEnclosed Switching Power Supply meets your needs for AC DC andDC DC power requirements. SPPC provides the most flexible OEM system power solutions from 5V to 48V at 150W for industrial control and automation applications.All the range carries full certification and offers a wide range of universal input and screwterminalconnections. It has been designed for its performance and compact dimensions.Power supply model Panel mounted Output voltage Output powerInput type (single phase)Optional features (Power Factor Correction)ApprovalsE258396Output PerformancesMODEL NO. INPUT VOLTAGEOUTPUT POWEROUTPUT VOLTAGEOUTPUT CURRENTVOLTAGE OUT ADJEFF. (typ.)115VAC 115VACSingle Output ModelsSPPC 5 150 1F 85~264 VAC 150 WATTS5 VDC 30.0 A4.3VDC ~ 5.6VDC 80% 82% SPPC 12 150 1F85~264 VAC 150 WATTS 12 VDC12.5 A10.6VDC ~ 13.5VDC 83% 86% SPPC 15 150 1F85~264 VAC 150 WATTS 15 VDC10.0 A12.7VDC ~ 17.0VDC 83% 86% SPPC 24 150 1F85~264 VAC 150 WATTS 24 VDC 6.3 A 22.1VDC ~ 26.7VDC 84% 86%SPPC 48 150 1F85~264 VAC 150 WATTS 48 VDC 3.2 A 44.0VDC ~ 52.0VDC 84% 87%Output DataLine regulation± 0.5% Load regulation ±1.0% Minimum load 0ATurn on time (full resistive load)<2.0s (115Vac input, Full load)<1.0s (230Vac input, Full load)Transient recovery time3msOutput voltage accuracy±1.0%±2.0% (on SPPC 5 150 1F)Temperature coefficient ±0.03%/°CHold up time>20ms (115VAC/230VAC input, Full load)Voltage fall time (I nom Vi nom) <80msVoltage rise timeVi nom, Io nom150ms Vi nom, Io nom with 3500μF CAP 500ms Voltage trim range5V Model 4.3 VDC ~ 5.6 VDC12V Model 10.6 VDC ~ 13.5 VDC15V Model 12.7 VDC ~ 17.0 VDC24V Model 22.1 VDC ~ 26.7 VDC48V Model 44.0 VDC ~ 52.0 VDCRated continuous loading5V Model 30.0A12V Model 12.5A15V Model 10.0A24V Model 6.3A48V Model 3.2A1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 14/10/2013
