SPM4121

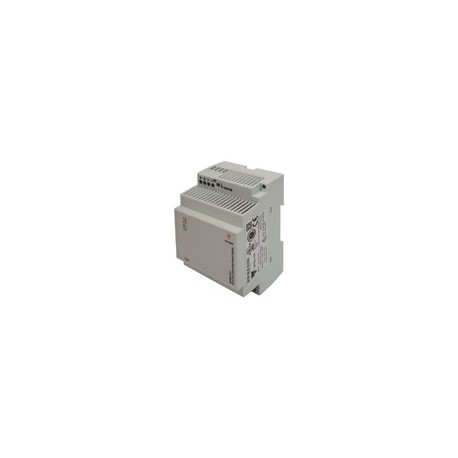

Modular Switching Power SupplyType SPM 4DIN railmounting• Single DIN module• Universal input 90/264VAC – 120/370VDC• High efficiency up to 86%• Short circuit protection• Overload protection• Internal input filter• LOW voltage LED indicator• UL Class 2 OutputProduct DescriptionOrdering KeySPM 4 - 24 1SPM Modular switching power supplies are specificallydesignedin order to satisfy both the Automation and the Building automationapplicationrequirements. The four DIN modulesPSiscapableof up to 60W of output power. Its high efficiency prevents excess of heat in the installation place.SeriesNumber of DIN modulesOutput VoltagePhases (only single phase)ApprovalsRheinlandProduct Safety* only 12, 15, 24VDCClass 2*Output PerformancesInputVoltage VAC Output Power (W)OutputVoltage VDCCurrent (A)TypicalEfficiencySPM4-051 90~264 35 5 7.080% SPM4-121 90~264 54 124.584% SPM4-151 90~264 60 154.085% SPM4-241 90~264 60242.586%Output DataLine regulation ±1% max. Load regulation±1% Output Voltage accuracy ±1% Ripple and Noise 50mVTemperature Coefficient ±0.03%/°C (±0.0112%/°F)Hold up timeVi = 115VAC 5V and 16V: 10ms15V and 24V: 12msVi = 230VAC 60msDC ON indicatorMin. Max.5V model 3.5VDC 4.5VDC12V model 9VDC10.8VDC15V model11VDC 13.5VDC24V model19.2VDC 21.6VDCDC LOW indicator Min. Max.5V model 3.5VDC 4.5VDC12V model 9VDC10.8VDC15V model11VDC 13.5VDC24V model19.2VDC 21.6VDCVoltage rise timeVi nom, Io nom150msVi nom, Io nom with 3500µF CAP 500msVoltage fall time (I0nom, Vi nom)150ms Capacitor Load 3500µF Transient recovery time(50% load step changed) 2msTurn on time (full resistive load)Vi nom, Io nom 1000msVi nom, Io nom with 3500µF1500msRated continuos loading5V model 7A @ 5VDC / 6.3A @ 5.5VDC12V model 4.5A @ 12VDC / 3.8A @ 14VDC15V model 4A @ 15VDC / 3.6A @ 16.5VDC24V model 2.5A @ 24VDC / 2.1A @ 28VDCMinimum load0%1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 0102011
