SPET2-335

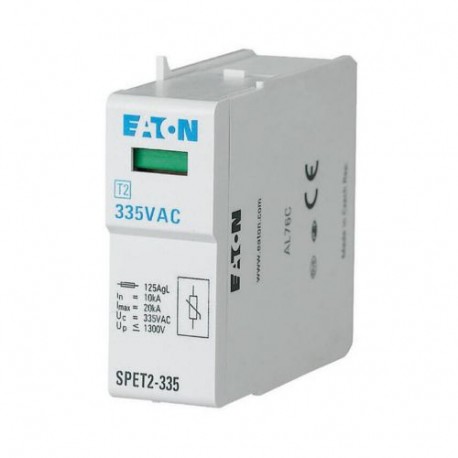

SPET2-335 168694 Y7-168694 EATON ELECTRIC Surge arrester plug-in unit, 335VAC, 4, 5 kA
$0.00USD
4762 in stock
Key Specifications
Feature Name:Feature Value
Category type 2 (EF004230):Yes
Max. PV-voltage (EF008795):0 V
Mounting method (EF000003):On basic element
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Category type 2 (EF004230) | Yes |
| Max. PV-voltage (EF008795) | 0 V |
| Mounting method (EF000003) | On basic element |
| Construction size (EF002566) | 1 modular spacing |
| Nominal voltage AC (EF004220) | 335 V |
| Nominal voltage DC (EF004221) | 0 V |
| Leakage-current free (EF016002) | No |
| Integrated backup fuse (EF008797) | No |
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TT (EF009931) | No |
| Signalling at the device (EF004241) | Optic |
| Voltage protection level (EF003525) | 1.3 kV |
| Degree of protection (IP) (EF005474) | IP20 |
| System configuration TN-C (EF009929) | No |
| System configuration TN-S (EF009930) | No |
| Max. continuous voltage AC (EF004198) | 335 V |
| Max. continuous voltage DC (EF004777) | 0 V |
| System configuration other (EF009932) | Yes |
| System configuration TN-C-S (EF009933) | No |
| Voltage protection level L-N (EF004236) | 0 kV |
| Voltage protection level N-PE (EF008796) | 0 kV |
| With remote signalling contact (EF000422) | No |
| Integrated short-circuit protection (EF016000) | No |
| Max. discharge surge current (8/20) (EF012274) | 20 kA |
| Nominal discharge surge current (8/20) (EF004214) | 10 kA |
| Number of conductors (without earthing) (EF001148) | 0 |
| Short-circuit breaking capacity (Isccr) (EF012627) | 0 kA |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 0 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25 mm² |
| Integrated short-circuit protection selective to fuse gG (EF016001) | 0 A |
| Max. overcurrent protection device, series connection (fuse) (EF015963) | 100 A |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 0 A |
Product Description
SPET2-335
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
