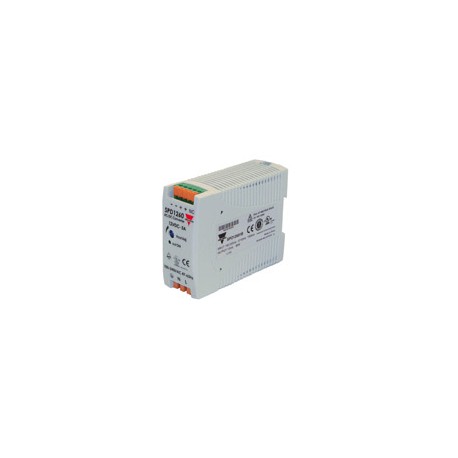

SPD48601B

Switching Power SupplyTypeSPD60WDIN railmounting• Universal AC input full range• Installation on DIN rail 7.5 or 15mm• Short circuit protection• Overload protection• Class 2 output• High efficiency• LED indicator for DC power ON• Power Ok output• CE, TUV approved and cULus ListedProduct DescriptionOrdering Key SP D 24 60 1 BThe Switching power supplies SPD series are specially designed to be used in all automation application where the installation is on a DIN railand compact dimensions and performance are a must.ModelMounting ( D = Din rail ) Output voltageOutput power Input Type Optional featuresInput type: 1= single phaseApprovalsOptional FeaturesDescription CodeRheinlandProduct SafetySpring connectorsBOutput PerformancesModel Rated outputVoltage (VDC)OutputPower (W)OutputCurrent (A)Voltage Trim RangeDC ON green LED at start upDC LOW red LED after start up TypicalEfficiencyMin. VDC Max. VDC Min. VDC Max. VDCSPD0555010.0 55.53.54.5 79% SPD12 12 60 5.0 12 149.0 10.886% SPD24 24 60 2.5 24 28 18 21.689% SPD48 48 601.2548 55 37 43 89%Output DataLine regulation± 0.5% Load regulation ± 0.5% Minimum load (A) 0Turn on time (full resistive load)1000ms maxTransient recovery time 2ms Ripple and noise 50mVpp Output voltage accuracy ± 1% Temperature coefficient ± 0.03%/°C Hold up timeVi= 115VAC 20msVi= 230VAC 30msVoltage fall time (I0nom) 150ms maxRated continuous loading5V Model10A@ 5VDC/9.0A @ 5.5VDC12V Model5A @ 12VDC/4.25A @ 14VDC24V Model2.5A@ 24VDC/2.1A @ 28VDC48V Model1.25A @ 48VDC/1.08A @ 55VDCReverse voltage5V Model7.5VDC12V Model18VDC24V Model35VDC48V Model63VDCCapacitor load7000µFVoltage rise time at 150ms maxfull resistive load1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/12
