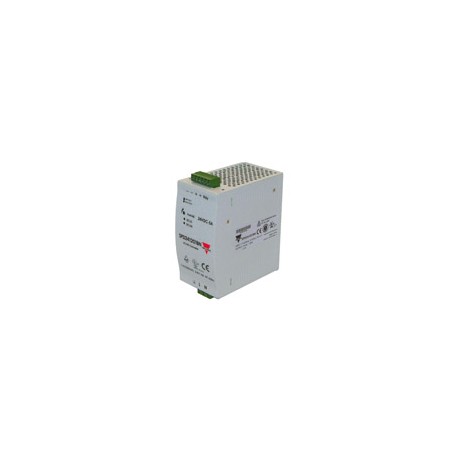

SPD481201

Switching Power SupplyType SPD 120W DIN railmounting• Installation on DIN Rail 7.5or 15mm• Short circuit protection• PFC available• High efficiency• Power ready output• LED indicator for DC power ON• LED indicator for DC low• Parallel versions available• Compact dimensions• UL, cUL listed and TUV/CE approvedProduct DescriptionOrdering KeySP D 24120 1 BFPThe Switching power supplies SPD series are specially designed to be usedinallautomationapplication where the installationis on a DIN rail and compactdimensions and performance are a must.ModelMounting (D= Din rail) Output voltageOutput power Input Type Optional featuresInput type: 1= single phaseApprovals Optional FeaturesDescriptionCodeRheinlandProduct SafetyPlug-in connectors BxxWith P.F.C.xFxWith Parallel functionxxPOutput PerformancesMODEL NO.INPUT VOLTAGEOUTPUT WATTAGEOUTPUT VOLTAGESingle Output ModelsOUTPUT CURRENTEFF. (min.)EFF. (typ.)SPD121ø 90~264 VAC120 WATTS +12 VDC10 A85%87%SPD241ø 90~264 VAC120 WATTS +24 VDC 5 A 87%94%Output DataLine regulation± 1% Load regulation ±1% Minimum load 0A Turn on time (full resistive load)VI nom, Io nom1000msVI nom, Io nom 12V modelwith 3500 μF CAP1500msVI nom, Io nom 24Vmodels with 7000 μF CAP1500ms Transient recovery time2ms Ripple and noise 100mVpp Output voltage accuracy±1%Temperature coefficient ±0.03%/°C Hold up time Vi 20ms Voltage fall time (I nom Vi nom) 150ms maxVoltage fall time (I nom Vi nom) 150ms maxRated continuous loading12V Model 10A@ 12VDC/8.2A @ 14.5VDC24V Model 5A @ 24VDC/4.2A @ 28.5VDCReverse voltage12V Model VDC 1824V Model VDC 35Capacitor loadVi nom Io nom 12V model7000μF Vi nom Io nom 24V model3500μF Voltage rise timeVi nom Io nom 500msVi nom, Io nom 12Vmodel with 7000μF CAP 500ms24V model with 3500μF CAP500ms1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 20/03/14
