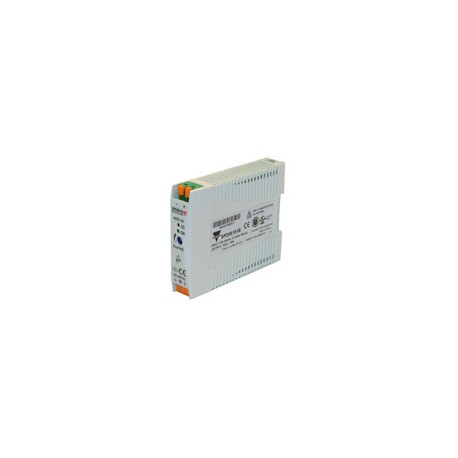

SPD15181B

Switching Power SupplyTypeSPD18WDIN railmounting• Universal AC input full range• Installation on DIN rail 7.5 or 15mm• Short circuit protection• Overload protection• High efficiency• LED indicator for DC power ON• LED indication for DC low• Internal input filter• CE, TUV approved and cULus ListedProduct DescriptionOrdering Key SP D 24 18 1 BThe Switching power supplies SPD series are specially designed to be used in all automation application where the installation is on a DIN railand compact dimensions and performance are a must.ModelMounting ( D = Din rail ) Output voltageOutput power Input Type Optional featuresInput type: 1= single phaseApprovalsOptional FeaturesDescription CodeRheinlandProduct SafetySpring connectorsBClass I, Div 2UL 1310 UL 60950-1Output performancesMODEL NO. INPUT VOLTAGEOUTPUT WATTAGEOUTPUT VOLTAGEOUTPUT CURRENTEFF. (min.)EFF. (typ.)Single Output ModelsSPD05 90~264 VAC15 WATTS + 5 VDC 3000 mA73%75% SPD12 90~264 VAC18 WATTS +12 VDC1500 mA75%77% SPD15 90~264 VAC18 WATTS +15 VDC1200 mA75%77% SPD24 90~264 VAC18 WATTS +24 VDC 750 mA 75%77%Output dataLine regulation± 1% Load regulation ± 2% Minimum load 0Turn on time (full resistive load)1000ms Vi nom, Io nom with 7000µF CAP 1500ms Transient recovery time 2ms Ripple and noise 50mVpp Output voltage accuracy ± 1%Temperature coefficient ± 0.03%/°CHold up timeVi= 115VAC 20msVi= 230VAC 75msVoltage fall time (I0nom) 150ms maxRated continuous loading5V Model3A @ 5VDC/2.6A @ 5.75VDC12V Model1.5A@ 12VDC/1.3A @ 13.8VDC15V Model1.2A@ 15VDC/1.0A @ 17.25VDC24V Model0.75A @ 24VDC/0.6A @28.8VDCReverse voltage5V ModelVDC 7.512V ModelVDC 1815V ModelVDC 2224V ModelVDC 35Capacitor load7000µFVoltage rise timeVi nom Io nom 150msVi nom, Io nom with 7000µF CAP 500ms1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/12
