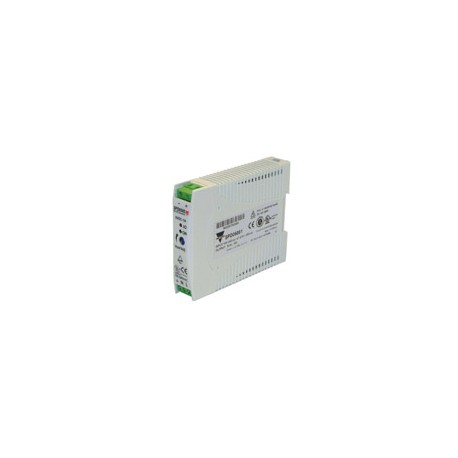

SPD12051B

Switching Power SupplyTypeSPD5WDIN railmounting• Universal AC input full range• Installation on DIN rail 7.5 or 15mm• Short circuit protection• Overload protection• High efficiency• LED indicator for DC power ON• LED indication for DC low• Internal input filter• CE, TUV approved and cULus ListedProduct DescriptionOrdering Key SP D 12 05 1 BThe Switching power supplies SPD series are specially designed to be used in all automation application where the installation is on a DIN railand compact dimensions and performance are a must.ModelMounting ( D = Din rail ) Output voltageOutput power Input Type Optional featuresInput type: 1= single phaseApprovalsOptional FeaturesDescription CodeRheinlandProduct SafetySpring connectorsBOutput PerformancesMODEL NO.INPUT VOLTAGEOUTPUT WATTAGEOUTPUT VOLTAGEOUTPUT CURRENTEFF. (min.)EFF. (typ.)EFF. (avg.)Single Output ModelsSPD0590~264 VAC5 WATTS + 5 VDC 1000 mA67%83% 69% SPD1290~264 VAC5 WATTS +12 VDC420 mA 70%86% 72% SPD2490~264 VAC5 WATTS +15 VDC340 mA 70%87% 72% SPD4890~264 VAC5 WATTS +24 VDC210 mA 70%87% 72%Output DataLine regulation± 1% Load regulation ± 2% Minimum load 0Turn on time (full resistive load)1000ms maxTransient recovery time 2ms Ripple and noise 50mVpp Output voltage accuracy ± 1% Temperature coefficient ± 0.03%/°C Hold up timeVi= 115VAC 30msVi= 230VAC 130msVoltage fall time (I0nom) 150ms maxRated continuous loading5V Model 1.0A @ 5VDC/0.85A @ 5.75VDC12V Model0.42A @ 12VDC/0.36A @ 13.8VDC15V Model0.34A @ 15VDC/0.28A @ 17.25VDC24V Model0.21A @ 24VDC/0.17A @28.8VDCReverse voltage5V Model VDC 7.512V ModelVDC 1815V ModelVDC 2224V ModelVDC 35Capacitor load7000µFVoltage rise time at 150ms maxfull resistive load1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/12
