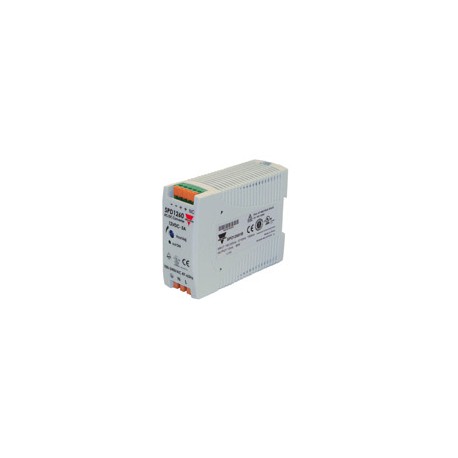

SPD05301B

Switching Power SupplyTypeSPD30WDIN railmounting• Universal AC input full range• Installation on DIN rail 7.5 or 15mm• Short circuit protection• Overload protection• Class 2 output• High efficiency• LED indicator for DC power ON• Power Ok output• CE, TUV approved and cULus ListedProduct DescriptionOrdering Key SP D 12 30 1 BThe Switching power supplies SPD series are specially designed to be used in all automation applicationwheretheApprovalsinstallationis on a DIN rail and compact dimensions and performance are a must.ModelMounting ( D = Din rail ) Output voltageOutput power Input Type Optional featuresInput type: 1= single phaseOptional FeaturesDescription CodeRheinlandProduct SafetySpring connectorsBClass I, Div 2UL 1310 UL 60950-1Output performancesMODEL NO. INPUT VOLTAGEOUTPUT WATTAGEOUTPUT VOLTAGEOUTPUT CURRENTEFF. (min.)EFF. (typ.)Single Output ModelsSPD05 85~264 VAC30 WATTS + 5 VDC 6000 mA77%79% SPD12 85~264 VAC30 WATTS +12 VDC2500 mA82%84% SPD24 85~264 VAC30 WATTS +24 VDC1250 mA83%86% SPD48 85~264 VAC30 WATTS +48 VDC 625 mA 83%86%Output DataLine regulation± 0.5% Load regulation ± 0.5% Minimum load 0Turn on time (full resistive load)Vi nom, Io nom1000msVi nom, Io nom with 3500µF CAP2000msTransient recovery time 2ms Ripple and noise 50mVpp Output voltage accuracy ± 1% Temperature coefficient ± 0.03%/°C Hold up timeVi= 115VAC20msVi= 230VAC 30msVoltage fall time (I0nom) 150ms maxRated continuous loading5V Model6A @ 5VDC/5.4A @ 5.5VDC12V Model2.5A@ 12VDC/2.1A @ 14VDC24V Model1.25A @ 24VDC/1.05A @ 28VDC48V Model0.625A @ 48VDC/0.54A @ 55VDCReverse voltage5V Model7.5VDC12V Model18VDC24V Model35VDC48V Model63VDCCapacitor load3500µFVoltage rise timeVi nom Io nom 150msVi nom, Io nom with 3500µF CAP 500ms1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/12
