SP-B+C/3

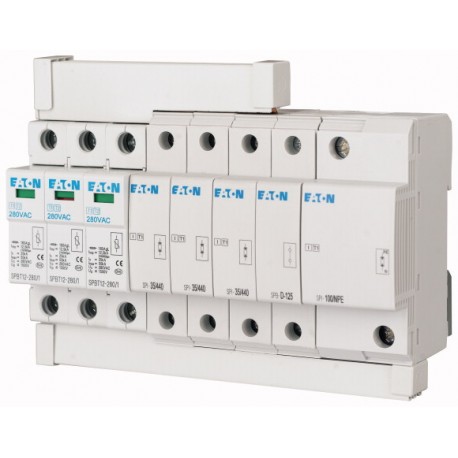

SP-B+C/3 267489 EATON ELECTRIC Surge arrester set, TN-C set, 3pole
$0.00USD
4850 in stock
Key Specifications
Feature Name:Feature Value
Test class (EF004228):Type 1 + 2
Max. PV-voltage (EF008795):0 V
Mounting method (EF000003):DIN rail (top hat rail) 35 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Test class (EF004228) | Type 1 + 2 |
| Max. PV-voltage (EF008795) | 0 V |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Number of poles (EF001391) | 3 |
| Construction size (EF002566) | 6 modular spacing |
| Remote signalling (EF004192) | No |
| Nominal voltage AC (EF004220) | 0 V |
| Nominal voltage DC (EF004221) | 0 V |
| Specific energy (W/R) (EF009797) | 0 kJ/Ohm |
| Integrated backup fuse (EF008797) | No |
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | Yes |
| System configuration TN (EF009928) | Yes |
| System configuration TT (EF009931) | No |
| Signalling at the device (EF004241) | Optic |
| Voltage protection level (EF003525) | 1.5 kV |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN-S (EF009930) | No |
| Max. continuous voltage AC (EF004198) | 0 V |
| Max. continuous voltage DC (EF004777) | 0 V |
| System configuration other (EF009932) | No |
| System configuration TN-C-S (EF009933) | Yes |
| Voltage protection level L-N (EF004236) | 0 kV |
| Voltage protection level N-PE (EF008796) | 0 kV |
| Voltage protection level (DC+ - DC-) (EF009643) | 0 kV |
| Overcurrent protected voltage tapping (EF016004) | No |
| Lightning impulse current (10/350 µs) (EF000421) | 35 kA |
| Voltage switching spark gap technology (EF016003) | No |
| Follow current extinguishing capability (EF004193) | 1 kA |
| Voltage protection level (DC+/DC- - PE) (EF009644) | 0 kV |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Energy-coordinated protection effect with regard to the terminal equipment (EF009798) | Yes |
Product Description
Surge arrester: applied in accordance with IEC60364-5-53 Clause 534For protection of consumer systems
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
