SP-320-27

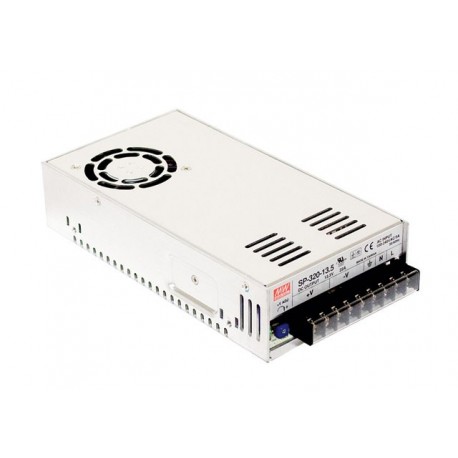

SP-320-27 MEANWELL AC-DC Enclosed power supply, Output 27VDC / 11.7A, PFC, forced air cooling
$0.00USD
4541 in stock
Key Specifications
Fan:Yes
Name:SP-320-27
State:Do not Use for New Designs
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | SP-320-27 |
| State | Do not Use for New Designs |
| Format | Box |
| Series | SP-320 |
| Approvals | CE, UL |
| Power (W) | 315,90 |
| Subformato | Grid |
| Width (mm) | 115.00 |
| Height (mm) | 50.00 |
| AC input Max | 264,00 |
| AC input Min | 88,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 27,00 |
| Peak Power (W) | 315.9 |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 215.00 |
| Long Description | Switch mode Power supply.Format in Box.Range of universal Input88-264vac47-63Hz.Output voltage27Vcc. Adjustable by potentiometer (26-31,5 Vdc).Output intensity11,7 To. Current range of output 0-11,7 according To the demand load.Factor Corrector, Power>0,95.Power:315,9 W.Efficiency typical:88%.Working temperature: from-20ºCup+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) :215 x 115 x 50mm.3 years of warranty.Manufacturer: MEAN WELL.The series SP-320 are switching power supplies with correction factor power active, having the ability to make on/off remote and include a fan for cooling controllable in on/off and speed depending on the models. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode Power supply.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
